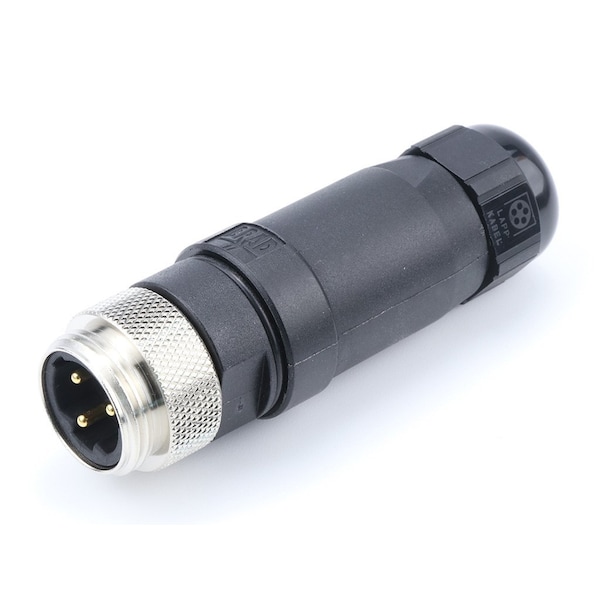

Mini-Change Field Attachable, Male Connector, 3 Pole
| Series | 130017 |
|---|---|
| IP Rating | IP67 |
| Type | Field Attachable Connector |
| Voltage - Maximum | 600V AC/DC |
| Product Name | Mini-Change |
| Diagnostics / LEDs | No |
| Keyway | Tri-Key |
| Orientation | Straight |
| Material - Coupling Nut | Nickel-plated Brass |
| Wire Size (AWG) | 14 to 24 |
| Poles | 3 |
| Material - Plating Mating | Gold |
| UL | E258922 |
| Material - Connector Body | Nylon |
| Material - Contact | Brass |
| Coupling Type | External Thread |
| Current - Maximum per Contact | 15 A |
| Gender | Male |
| Cable Diameter | 6.00-12.00mm |
| Temperature Range - Operating | -20°C to +80°C |
| Approvals | cULus Listed |
| Package Quantity | 1 |
