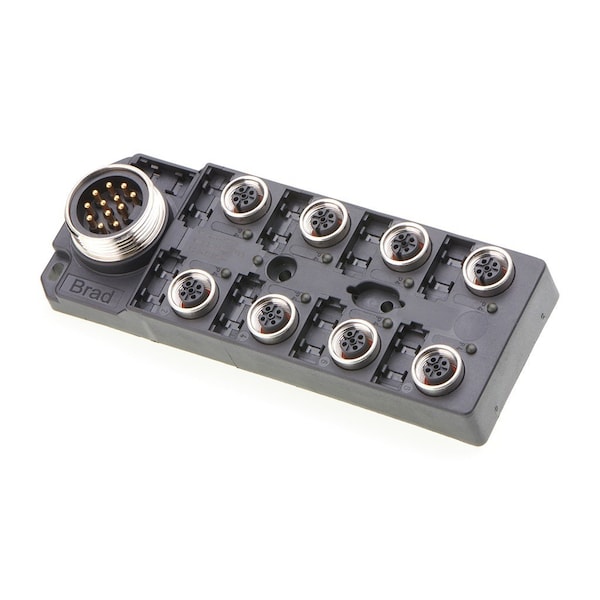

MPIS M12 PNP de 4 pines y 8 posiciones, con 12 pines, color negro, acero, sencillo.
| IP Rating | IP67 |
|---|---|
| Keyway | Single |
| Poles (wired) | 4 |
| Wiring Configuration | O, Port, Single I per |
| Poles | 4 |
| Material - Housing | PBT |
| Current - Maximum per Contact | 3.0A per port, 9.0A per module |
| UL | E152210 |
| Home Run Interface | Integrated Connector |
| Product Name | MPIS |
| Functional Wiring | PNP |
| Material - Metal | Brass |
| Voltage - Maximum | 10-30V DC |
| Series | 120248 |
| Material - Plating Mating | Gold |
| Cable Connector Orientation | Straight |
| Orientation | Top Mount |
| Home Run Connector | Mini-Change - 12 pole |
| Wire/Cable Type | TPE |
| Temperature Range - Operating | -25 to 85 deg C |
| LED Indicator | PNP Sensors |
| Ports | 8 |
| Package Quantity | 1 |
