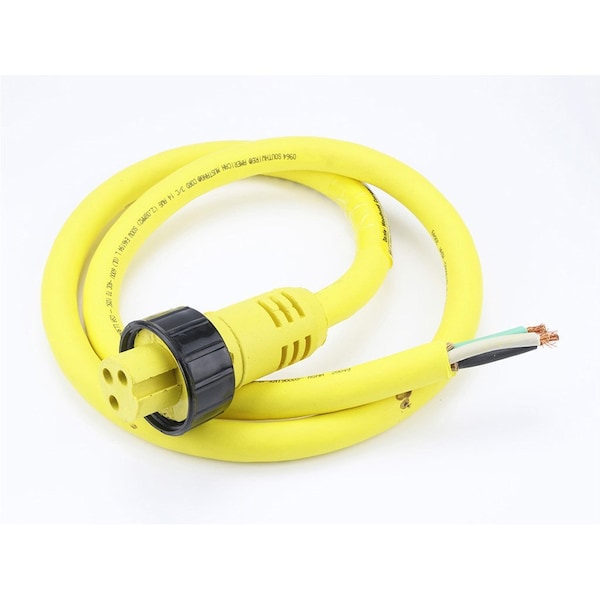

QC 3P FP 12 FT. 14/3 SO CORD se traduce como: Cable de extensión de 12 pies con 3 clavijas, calibre 14/3.
| Cable Length | 3.66 m |
|---|---|
| Keyway | Single |
| Type | Single Ended |
| IP Rating | IP67 |
| Wire/Cable Type | SOW |
| Voltage - Maximum | 600 V |
| Product Name | Quick-Change |
| Material - Cable Jacket | CPE |
| Material - Contact | Copper Alloy |
| Connector End A | Quick-Change |
| CSA | LR6837 |
| Current - Maximum per Contact | 18 A |
| Gender | Female-Pigtail |
| Color - Cable Jacket | Yellow |
| Coupling Style | Threaded |
| Material - Connector Body | TPE |
| Connector End B | Pigtail |
| Series | 130000 |
| Cable Diameter | 14.6 mm |
| Wire Size (AWG) | 14 |
| LED Indicator | No |
| Poles | 3 |
| UL | E46237 |
| Temperature Range - Operating | -20° to +105°C |
| Material - Coupling Nut | Nylon |
| Orientation | Straight to Pigtail |
| Package Quantity | 1 |
