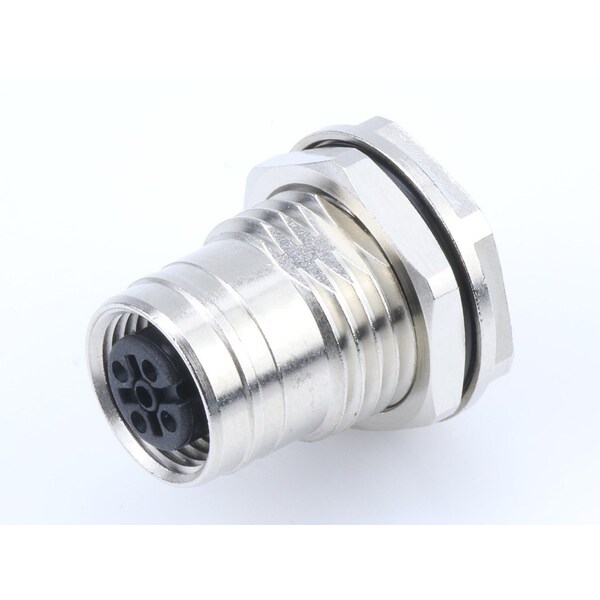

Rec U12 4P Ac Fe M16 Bm Sol Shd Bra Au
| Series | 120084 |
|---|---|
| Max. Voltage | 250V AC/DC |
| Material | Brass |
| Max. Temp. | 90 deg C |
| IP Rating | IP69K |
| Current Rating | 4 A |
| Sub-Category | Industrial Receptacles |
| Type | PCB Mount |
| Connector Type | Female |
| Temperature Range - Operating | -25° to +90°C |
| NEMA Rating | NEMA 6 |
| Voltage - Maximum | 60V |
| Material - Component | Nickel-plated Brass |
| Keyway | Single |
| Panel Mount | Back |
| Current - Maximum per Contact | 4 A |
| Poles | 4 |
| Product Name | Ultra-Lock |
| Coupling Type | Internal Thread |
| Mounting Thread Size | M16 x 1.5 |
| Orientation | Straight |
| Package Quantity | 1 |
