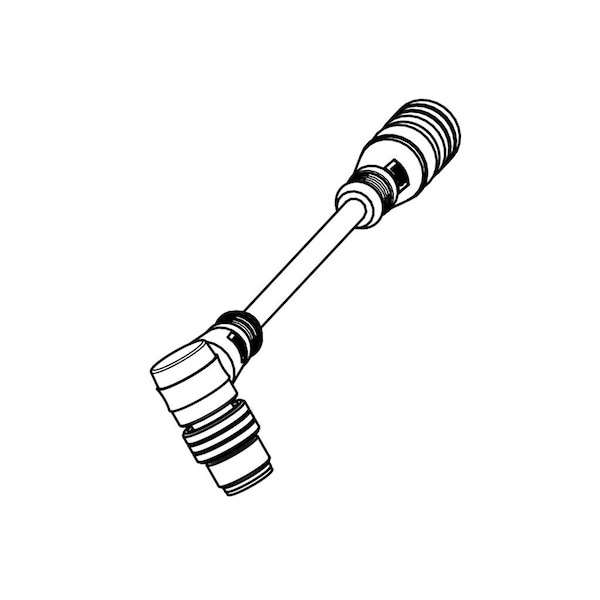

Cables de sensor / Cables de actuador Mic 5P M/Mfe 2M 90/St 22/5 Pvc
| Cable Length | 2 m |
|---|---|
| Series | 120066 |
| Type | Double Ended |
| Keyway | Single |
| IP Rating | IP67 |
| LED Indicator | No |
| Material - Contact | Copper Alloy |
| Temperature Range - Operating | -20° to +105°C |
| UL | E152210 |
| CSA | LR6837 |
| Current - Maximum per Contact | 4 A |
| Material - Connector Body | PUR |
| Material - Coupling Nut | Nickel-plated Brass |
| Voltage - Maximum | 250V AC/DC |
| Material - Cable Jacket | PVC |
| Cable Diameter | 5.72 mm |
| Poles | 5 |
| Connector End A | Micro-Change |
| Wire Size (AWG) | 22 |
| Orientation | 90° to Straight |
| Coupling Style | Threaded |
| Gender | Female-Male |
| Connector End B | Micro-Change |
| Wire/Cable Type | UL 2661 |
| Material - Plating Mating | Gold |
| Material - O-Ring | Fluoro-elastomer |
| Product Name | Micro-Change |
| Color - Cable Jacket | Yellow |
| Package Quantity | 1 |
