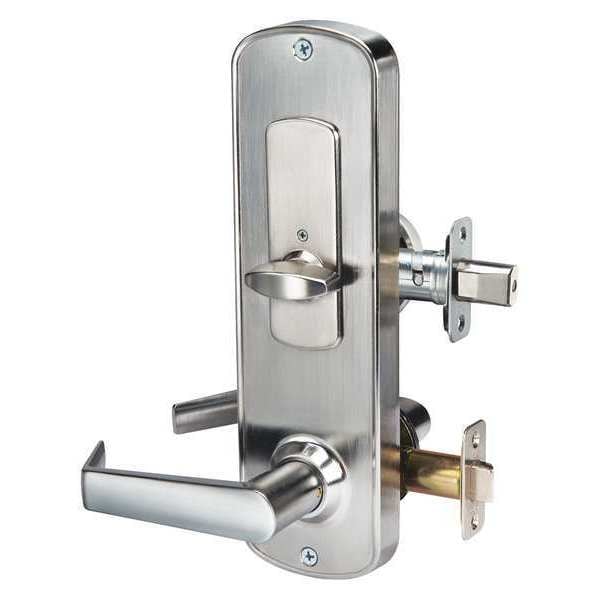

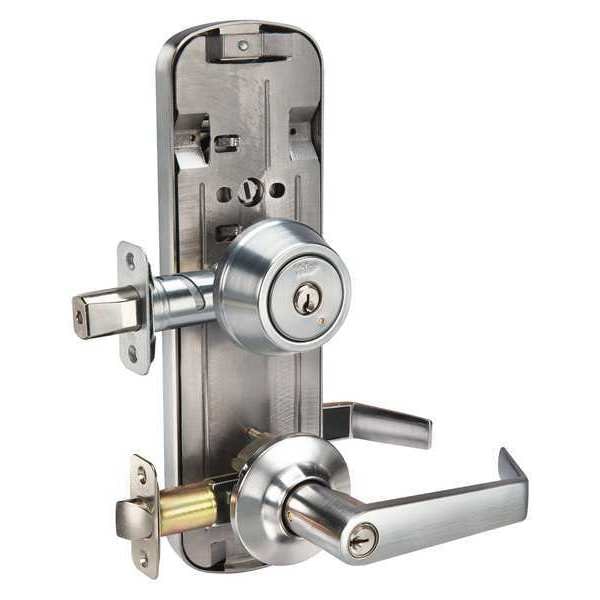

Lockset, Satin Nickel, Passage Function
| Backset | 2-3/4 in, 2-3/8 in |
|---|---|
| Electrical/Mechanical | Mechanical |
| For Use With | Residential |
| Includes | Deadbolt |
| Keyway Type | KW 6 Pin |
| Location Type | Commercial, Residential |
| Lockset Function | Passage |
| Lockset Handle Type | Lever |
| Number of Pins | 6 |
| Required Door Thickness | 1-3/8 in to 1-3/4 in |
| Series | YH852 |
| Style | Interconnected Lockset |
| Finish | Satin Nickel |
| Strike Type | Full Lip |
| Lockset Performance Strength | Heavy Duty |
| Number of Keys | 2 |
| Key Material | Nickel |
| Features | Deadbolt Activated with Key on the Outside, Interior Lever Retracts Latch and Deadbolt Simultaneously, Latch Bolt Operated by Either Lever, Single Point Lock |
| Strike Dim. | 2-1/4 in |
| Handle Material | Aluminum |
| Standards | UL Listed |
| Cylinder Core Type | Conventional Core Cylinder |
| Item | Door Lockset |
| Keying | Keyed Different |
| Grade | 2 |
| Fire Rated | Not Rated |
| Application | Commercial, Residential |
| Voltage | Not Applicable |
| Function | Passage |
| Visual Indicator Message | No Message |
| ANSI/BHMA Finish | Satin Nickel-Plated, Clear Coated |
| Knob/Handle Material | Aluminum |
| Lockset Type | Mechanical |
| Locking/Unlocking Access - Outside | Not Lockable |
| Door Thickness - Minimum | 1-3/8 in |
| Visual Indicator Location | Not Applicable |
| Performance Grade | 1 |
| Locking/Unlocking Access - Inside | Not Lockable |
| Door Thickness - Maximum | 1-3/4 in |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Strike Plate Height | 2-1/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
