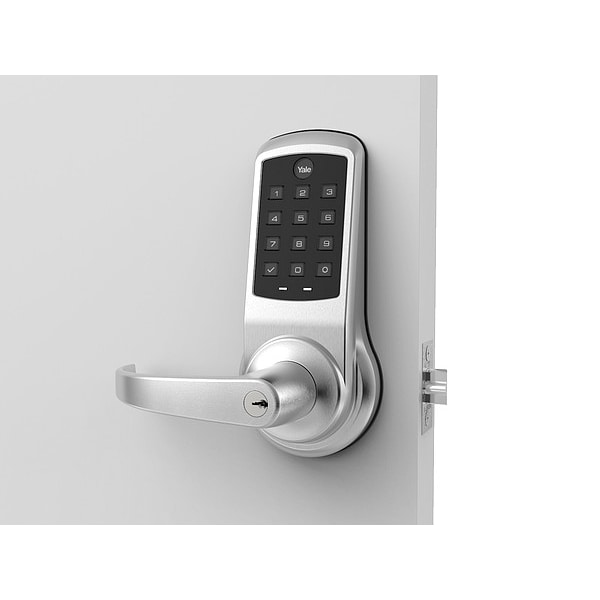

nexTouch Cylindrical Keypad Lock
| Item | Electronic Keyless Lock |
|---|---|
| Access Method | Keypad |
| Product Type | Keypad Lock |
| Bolt Throw | 1/2 in |
| ADA Compliant | Yes |
| Standards | ISO 9001, UL Listed, ULC Listed |
| Fire Rating | 3 hr |
| Voltage | 9V DC |
| Overall Width | 7 1/16 in |
| Power Source | AA Batteries |
| Overall Depth | 3-5/16 in |
| Backset | 2 3/4 in |
| Hand Orientation | Non-Handed |
| Lockset Handle Type | Lever |
| Locking/Unlocking Access - Inside | Not Lockable |
| Compatible Brand | Schlage |
| Compatible Manufacturer Model Number | Not Applicable |
| Temperature - Maximum | 140 deg F |
| User Codes - Maximum | 500 |
| Strike Base Width | 3-5/8 in |
| Lockset Function | Privacy |
| Locking/Unlocking Access - Outside | Keyway |
| Cylinder Core Type | Small Format Interchangeable Core Cylinder |
| Door Thickness - Minimum | 1 3/8 in |
| Temperature - Minimum | -40 deg F |
| ANSI Grade | 1 |
| Failure Mode | Not Applicable |
| Operation Type | Push Button |
| Includes Core | Core Included |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Compatible Series | 4,000 |
| Lockset Material | Zinc Cast |
| Door Thickness - Maximum | 1-3/4 in |
| Lockset Type | Mechanical |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
