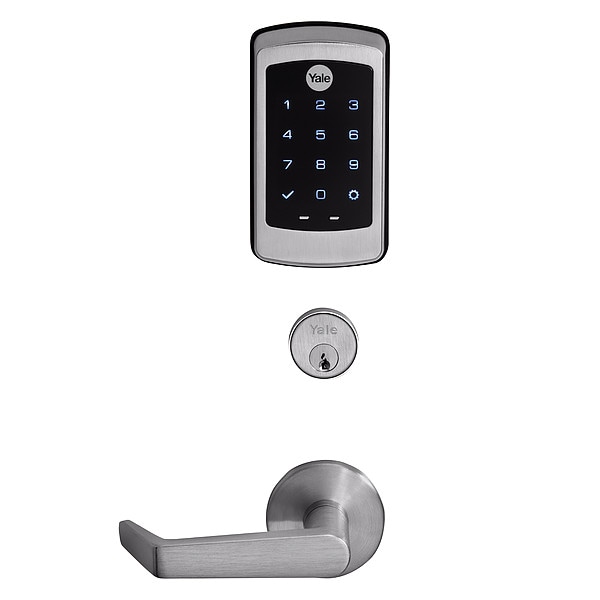

nexTouch Sectional Mortise Keypad Lock
| Item | Electronic Keyless Lock |
|---|---|
| Access Method | Keypad |
| Product Type | Keypad Lock |
| Bolt Throw | 3/4 in |
| ADA Compliant | Yes |
| Standards | ANSI/BHMA A156.13 Grade 1, cUL Listed, UL Listed |
| Overall Width | 5 3/4 in |
| Power Source | AA Batteries |
| Fire Rating | 3 hr |
| Voltage | 9V DC |
| Overall Depth | 2-1/4 in |
| Location Type | Commercial |
| Backset | 2 3/4 in |
| Strike Type | Mortise |
| Door Thickness - Maximum | 3-1/4 in |
| Strike Base Width | 2-9/16 in |
| Cylinder Core Type | Small Format Interchangeable Core Cylinder |
| Temperature - Minimum | -40 deg F |
| Locking/Unlocking Access - Inside | Not Lockable |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Compatible Manufacturer Model Number | Not Applicable |
| ANSI Grade | 1 |
| Hand Orientation | Right-Handed |
| Strike Base Height | 3/8 in |
| Compatible Series | 1,000 |
| Door Thickness - Minimum | 1 3/4 in |
| Lockset Type | Mechanical |
| Failure Mode | Not Applicable |
| Locking/Unlocking Access - Outside | Keyway |
| Includes Core | Core Not Included |
| Lockset Handle Type | Lever |
| Temperature - Maximum | 140 deg F |
| Lockset Material | Cast |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
