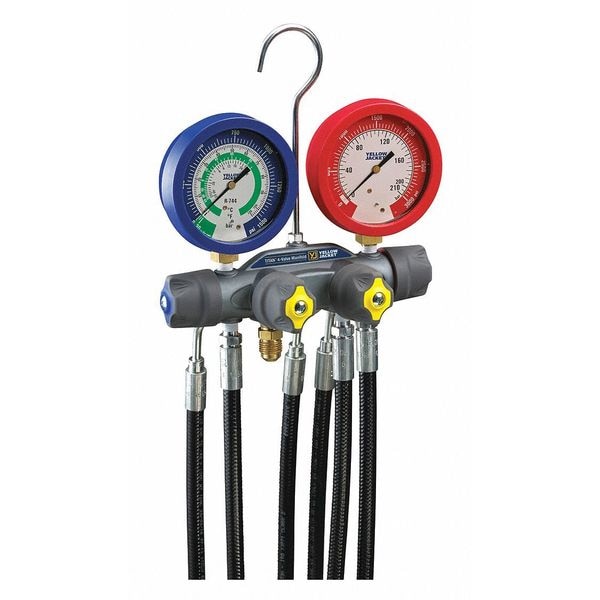

Manifold Gauge, 78" L, 1/4" Port Size
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Manifold Gauge |
| Number of Valves | 4 |
| Refrigerant Compatibility | Multiple Refrigerants |
| Number of Hoses | 4 |
| Vacuum Port Size | 1/4 in |
| Gauges High Side Red | 0 to 3000 psi |
| Hose Length | 6 ft |
| Standards | NIST |
| Gauges Low Side Blue | 30 inHg to 1,500 psi |
| Features | Easy Access Front Hose Holders, Resettable Valve Stem Packing |
| Gauge Accuracy | +/-1.00% |
| Includes | Not Applicable |
| Material | Forged Aluminum Alloy |
| Product Type | Manifold Gauge Set |
| Pressure Units Measured | psi, bar |
| A2L Compatibility | Not A2L Compatible |
| Body Material | Aluminum |
| For Refrigerant Type | R-744 |
| Temperature Resolution | 1 deg F, 1 deg C |
| Temperature Units Measured | Degrees, Degrees C F |
| High Side Display Pressure - Maximum | 3,000 psi |
| Warranty | 1 yr |
| Series | Titan |
| Gauge Diameter | 3-1/8 in |
| Low Side Display Pressure - Maximum | 1,500 psi |
| Display Type | Analog |
| Display Illumination | Non-Illuminated |
| Manifold Port Connection Type | SAE |
| Manifold Port Connection Thread Direction | Right-Hand |
| High Side Display Pressure - Minimum | 0 psi |
| App Compatibility | Not Applicable |
| Vacuum Port Connection Type | SAE |
| For Refrigerant Group | CO2 |
| Pressure Resolution | 5 psi |
| Vacuum Port Connection Gender | Male |
| Manifold Port Connection Size | 1/4 in |
| Gauge Type | High Side, Low Side |
| Includes Gauge Boots | Boot Not Included |
| Low Side Display Pressure - Minimum | 30 inHg |
| Accuracy | +/- 1% |
| Calibration Certificate Type | Not Certified |
| Manifold Port Connection Gender | Female |
| Includes Sightglass | Sightglass Not Included |
| Hose Color | Black |
| Includes Vacuum Port | Vacuum Port Included |
| Vacuum Port Connection Size | 3/8 in |
| Hose Connection Thread Direction | Right-Hand |
| Response Time | Not Applicable |
| Vacuum Port Connection Thread Direction | Right-Hand |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
