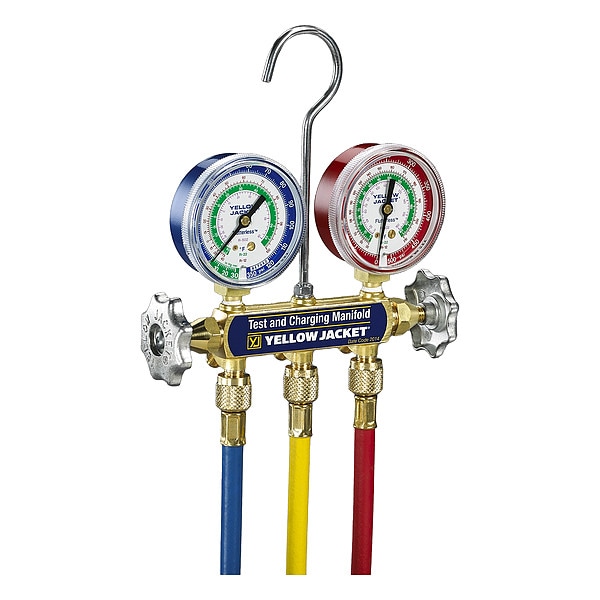

Manifold Gauge Set, 5 ft L, 2 1/2 in Gauge
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Manifold Gauge |
| Number of Valves | 2 |
| Number of Hoses | 3 |
| Overall Width | 10-3/4 in |
| Overall Height | 3-3/4 in |
| Includes | Not Applicable |
| Hose Length | 5 ft |
| Body Material | Brass |
| Series | 41 |
| Response Time | Not Applicable |
| Gauge Diameter | 2-1/2 in |
| Vacuum Port Connection Thread Direction | Right-Hand |
| Calibration Certificate Type | Not Certified |
| Includes Vacuum Port | Vacuum Port Included |
| Adjustment Method | Lever |
| Manifold Port Connection Type | SAE |
| Gauge Fill | Dry |
| Manifold Port Connection Gender | Male |
| Vacuum Port Connection Size | 1/4 in |
| Temperature Resolution | 1 deg F |
| Overall Depth | 11-7/8 in |
| Hose Color | Yellow, Blue, Red |
| Includes Gauge Boots | Boot Not Included |
| Hose Connection Thread Direction | Right-Hand |
| A2L Compatibility | Not A2L Compatible |
| Adjustment Material | Stainless Steel |
| Manifold Port Connection Size | 1/4 in |
| Low Side Display Pressure - Minimum | 30 inHg |
| Vacuum Port Connection Type | SAE |
| Hose Connection Type | SAE |
| Pressure Resolution | 5 psi |
| Product Type | Manifold Gauge Set |
| Pressure Units Measured | psi |
| Accuracy | +/- 3-2-3% |
| Display Type | Analog |
| Temperature Units Measured | Degrees F |
| Gauge Type | High Side, Low Side |
| Low Side Display Pressure - Maximum | 350 psi |
| High Side Display Pressure - Maximum | 500 psi |
| Manifold Port Connection Thread Direction | Right-Hand |
| Display Illumination | Non-Illuminated |
| Includes Sightglass | Sightglass Not Included |
| App Compatibility | Not Applicable |
| Vacuum Port Connection Gender | Male |
| Warranty | 1 yr |
| For Refrigerant Type | R-12, R-22, R-502 |
| High Side Display Pressure - Minimum | 0 psi |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
