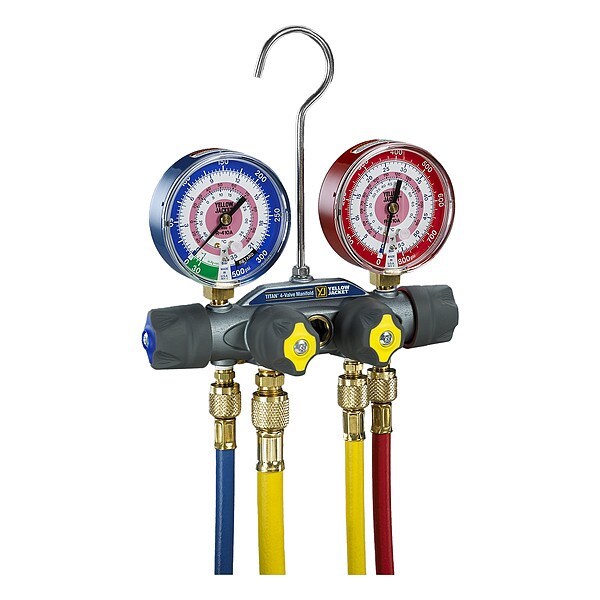

Manifold Gauge Set, 5 ft L, 3 1/8 in Gauge
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Manifold Gauge |
| Number of Valves | 4 |
| Number of Hoses | 4 |
| Overall Width | 11-1/2 in |
| Overall Height | 5-1/4 in |
| Includes | Not Applicable |
| Body Material | Aluminum |
| Overall Depth | 11-1/2 in |
| Hose Length | 5 ft |
| Low Side Display Pressure - Minimum | 30 inHg |
| Pressure Resolution | 5 psi |
| Pressure Units Measured | psi, bar |
| Hose Color | Yellow, Blue, Red |
| Includes Vacuum Port | Vacuum Port Included |
| Adjustment Method | Lever |
| For Refrigerant Type | R-32, R-410A |
| Product Type | Manifold Gauge Set |
| High Side Display Pressure - Minimum | 0 psi |
| Warranty | 1 yr |
| Calibration Certificate Type | Not Certified |
| Manifold Port Connection Size | 1/4 in |
| Temperature Resolution | 1 deg F, 1 deg C |
| Accuracy | +/- 1% |
| Vacuum Port Connection Type | SAE |
| Manifold Port Connection Thread Direction | Right-Hand |
| Manifold Port Connection Gender | Male |
| Vacuum Port Connection Size | 3/8 in |
| Display Type | Analog |
| Low Side Display Pressure - Maximum | 500 psi |
| Series | Titan |
| App Compatibility | Not Applicable |
| Vacuum Port Connection Thread Direction | Right-Hand |
| Includes Sightglass | Sightglass Included |
| Includes Gauge Boots | Boot Not Included |
| Display Illumination | Non-Illuminated |
| Gauge Fill | Dry |
| Gauge Type | High Side, Low Side |
| Vacuum Port Connection Gender | Male |
| Hose Connection Thread Direction | Right-Hand |
| A2L Compatibility | A2L Compatible |
| Temperature Units Measured | Degrees, Degrees C F |
| High Side Display Pressure - Maximum | 800 psi |
| Gauge Diameter | 3-1/8 in |
| Response Time | Not Applicable |
| Manifold Port Connection Type | SAE |
| Adjustment Material | Plastic |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
