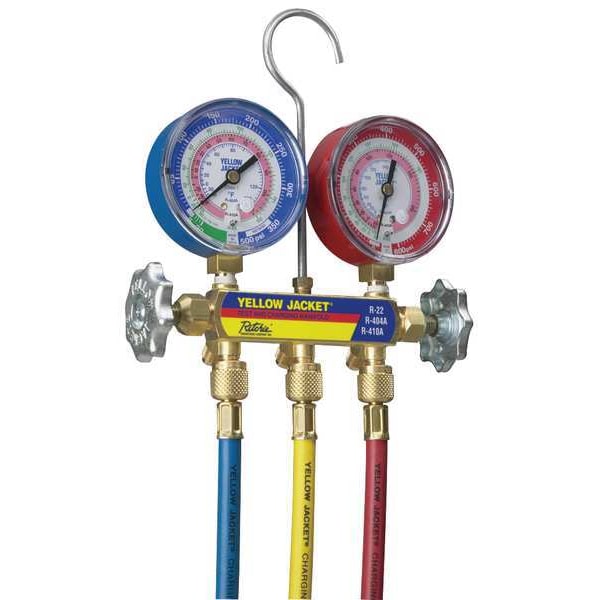

Mechanical Manifold Gauge Set, 2 Valve, 3 Hoses, Vacuum Port Size 1/4 in
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Manifold Gauge |
| Number of Valves | 2 |
| Refrigerant Compatibility | R-22, R-404A, R-410A |
| Number of Hoses | 3 |
| Vacuum Port Size | 1/4 in |
| Material | Forged Brass |
| Standards | UL Listed |
| Gauge Accuracy | +/-1.00% |
| Includes | Not Applicable |
| Hose Length | 5 ft |
| Gauges Low Side Blue | 0 to 350 psi |
| Gauges High Side Red | 0 to 800 psig |
| Product Type | Manifold Gauge Set |
| Type | Air Conditioning and Stationary Refrigeration |
| For Use With | R-22, R-404A, R-410A |
| Overall Width | 10-5/8 in |
| Temperature Units Measured | Degrees F |
| Vacuum Port Connection Size | 1/4 in |
| Overall Height | 3-1/2 in |
| Adjustment Method | Lever |
| High Side Display Pressure - Maximum | 800 psi |
| Display Type | Analog |
| Hose Connection Thread Direction | Right-Hand |
| Gauge Type | High Side, Low Side |
| Low Side Display Pressure - Minimum | 0 psi |
| Manifold Port Connection Size | 1/4 in |
| Pressure Resolution | 5 psi |
| Gauge Diameter | 3-1/8 in |
| A2L Compatibility | Not A2L Compatible |
| Response Time | Not Applicable |
| Adjustment Material | Stainless Steel |
| Overall Depth | 11-7/8 in |
| Calibration Certificate Type | Not Certified |
| For Refrigerant Type | R-22, R-404A, R-410A |
| Vacuum Port Connection Type | SAE |
| Warranty | 1 yr |
| Hose Color | Yellow, Blue, Red |
| Low Side Display Pressure - Maximum | 350 psi |
| Pressure Units Measured | psi |
| App Compatibility | Not Applicable |
| Includes Gauge Boots | Boot Not Included |
| Display Illumination | Non-Illuminated |
| Manifold Port Connection Type | SAE |
| Includes Sightglass | Sightglass Not Included |
| Body Material | Brass |
| Vacuum Port Connection Gender | Male |
| Temperature Resolution | 1 deg F |
| Hose Connection Type | SAE |
| Accuracy | +/- 1% |
| Includes Vacuum Port | Vacuum Port Included |
| Manifold Port Connection Thread Direction | Right-Hand |
| High Side Display Pressure - Minimum | 0 psi |
| Series | 41 |
| Vacuum Port Connection Thread Direction | Right-Hand |
| Manifold Port Connection Gender | Male |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
