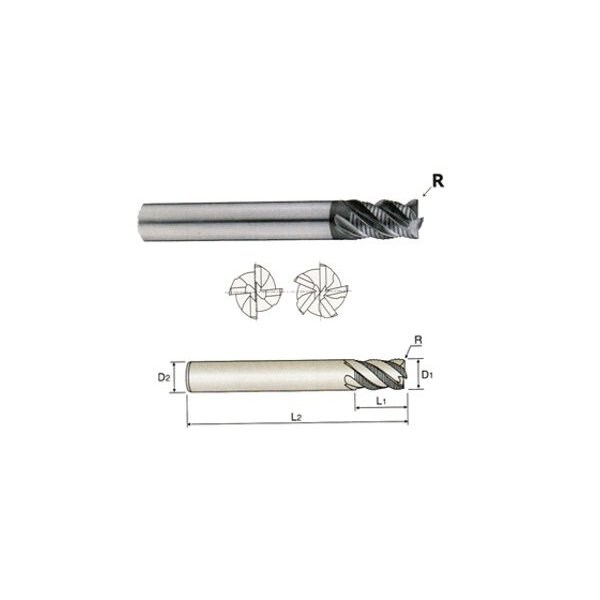

4 Flute Extended Reach Corner Radius Roughing X-Speed Carbide End Mill
| Dimension Type | Metric |
|---|---|
| Corner Radius | 0.5 mm |
| Milling Diameter | 6 mm |
| End Mill Material | Carbide |
| Number of Flutes | 4 |
| Single End/Double End | Single End |
| Finish | X-Coating |
| Shank Dia. | 6 mm |
| Overall Length | 57 mm |
| Steel (P) Compatibility | Yes |
| Shank Type | Plain |
| Cast Iron (K) Compatibility | Yes |
| Pitch | Fine Pitch |
| Helix Angle | 44/45 Degrees Multi-Helix |
| Cutting Direction | Right Hand |
| Length of Cut | 9 mm |
| End Mill Style | Radius |
| Overall Reach | 18 mm |
| Center Cutting | Yes |
| Chip-Breaker | Yes |
| Series | G9D77 |
| Spiral Direction | Right Hand |
| Helix Type | Equal Index |
| Package Quantity | 1 |
