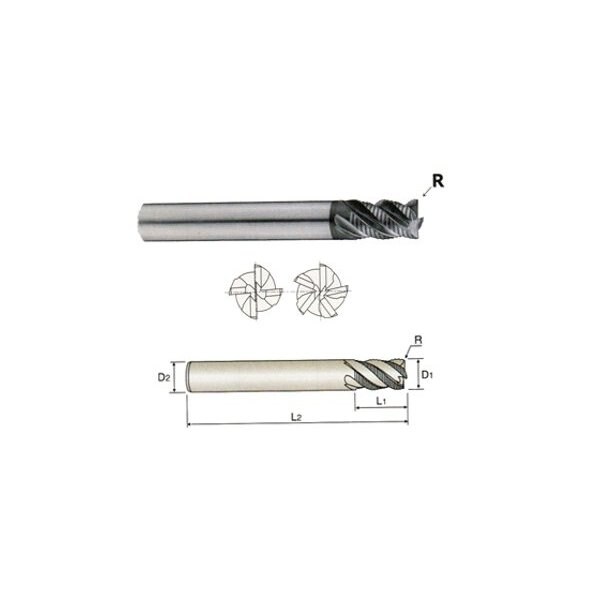

5 Flute Extended Reach Corner Radius Roughing X-Speed Carbide End Mill
| Dimension Type | Inch |
|---|---|
| Corner Radius | 0.04 in |
| Milling Diameter | 3/4 in |
| End Mill Material | Carbide |
| Number of Flutes | 5 |
| Single End/Double End | Single End |
| Finish | X-Coating |
| Shank Dia. | 3/4 in |
| Overall Length | 4-1/2 in |
| Cutting Direction | Right Hand |
| Pitch | Fine Pitch |
| Steel (P) Compatibility | Yes |
| Cast Iron (K) Compatibility | Yes |
| End Mill Style | Radius |
| Length of Cut | 1 in |
| Shank Type | Plain |
| Helix Angle | 44/44.5/45 Degrees Multi-Helix |
| Center Cutting | Yes |
| Chip-Breaker | Yes |
| Overall Reach | 2-3/8 in |
| Helix Type | Equal Index |
| Spiral Direction | Right Hand |
| Series | G909 |
| Package Quantity | 1 |
