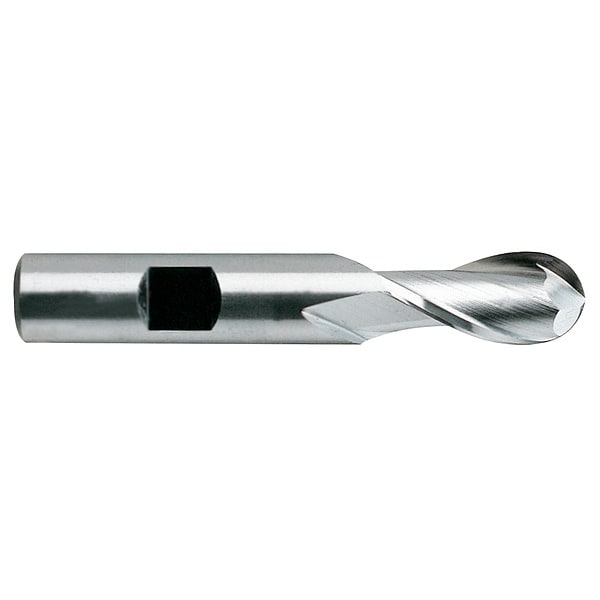

Ball End Mill, Single End, 5/8", Cobalt
| Number of Flutes | 2 |
|---|---|
| Length of Cut | 1-3/8 in |
| Single End/Double End | Single End |
| End Mill Cutting Type | Center Cutting |
| Shank Dia. | 5/8 in |
| Helix Angle | 30 deg |
| List Number | E2111 |
| End Mill Style | Ball Nose |
| Overall Length | 4.6 in |
| Item | Ball End Mill |
| Cutting Direction | Right Hand |
| Milling Dia. | 5/8 in |
| End Mill Application | Finishing |
| Finish | Tin |
| Material - Machining | Cobalt |
| Drilling Tool Configuration | Individual |
| Finish - Machining | TiN |
| Coolant Fed | Non-Coolant Through |
| Measurement System | Fractional Inch |
| Primary Material Application | Steel |
| Shank Type - Machining | Weldon Flat |
| Chip-Breaker | No |
| Primary Material Application ISO Code | P |
| Package Quantity | 1 |
