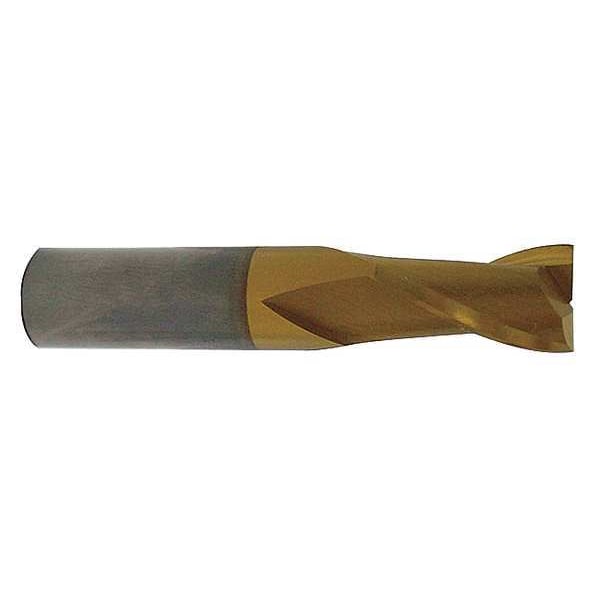

Carbide End Mill, Sq, 5/32, 5/16 Cut L
| Number of Flutes | 2 |
|---|---|
| End Mill Style | Square |
| Finish | Tin |
| Length of Cut | 5/16 in |
| End Mill Cutting Type | Center Cutting |
| Milling Diameter | 5/32 in |
| End Mill Material | Carbide |
| End Mill Application | Finishing |
| Dimension Type | Fractional Inch |
| Shank Dia. | 3/16 in |
| Cutting Direction | Right Hand |
| Helix Angle | 30 deg |
| Single End/Double End | Single End |
| Milling Dia. | 5/32 in |
| List Number | E5244 |
| Item | Square End Mill |
| Overall Length | 2 in |
| Drilling Tool Configuration | Individual |
| Material - Machining | Carbide |
| Cutting Direction - Machining | Right Hand |
| Shank Type - Machining | Straight |
| Measurement System | Fractional Inch |
| Neck Length | Not Applicable |
| Neck Dia. | Not Applicable |
| Finish - Machining | TiN |
| Material Applications | Steel, Carbon Steel, Prehardened Steel |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P |
| Package Quantity | 1 |
