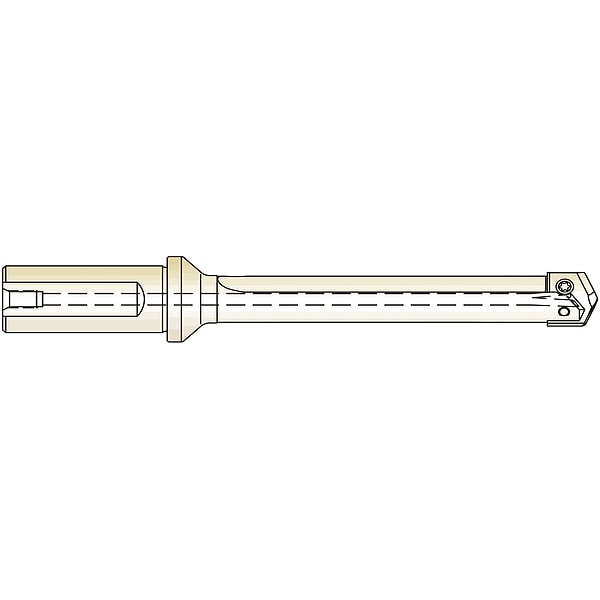

Flanged Spade Drill Holder
| Overall Length | 4-17/32 in |
|---|---|
| Item | Flanged Spade Drill Holder |
| Shank Length | 2-1/64 in |
| Number of Coolant Holes | 2 |
| Shank Type - Machining | Straight |
| Max. Drilling Depth | 1-3/8 in |
| Material - Machining | High Speed Steel |
| Flute Length | 2-1/2 in |
| Seat Size | 0.5 |
| Toolholder Style | P25 |
| Min. Drill Dia. | 39/64 in |
| Max Drill Dia. | 11/16 in |
| Flute Type | Straight |
| Coolant Fed | Coolant Through |
| Shank Dia. Measurement System | Inch |
| Coolant Pressure | 210 psi |
| Coolant Hole Shape | Round |
| Spiral Direction | Neutral |
| Finish - Machining | Black Oxide |
| Shank Dia. | 3/4 in |
| ANSI Code | P25051 |
| Cutting Direction | Right Hand |
| Flanged Shank | Yes |
| Insert Style | SV-Point |
| Package Quantity | 1 |
