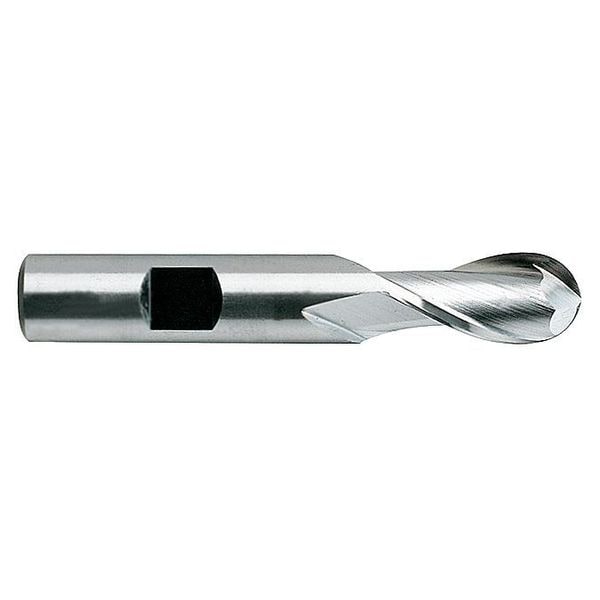

Cobalt End Mill, Ball, 1-1/8, 1-5/8 Cut L
| Dimension Type | Fractional Inch |
|---|---|
| Milling Diameter | 1-1/8 in |
| End Mill Material | Cobalt |
| Number of Flutes | 2 |
| Length of Cut | 1-5/8 in |
| Single End/Double End | Single End |
| End Mill Cutting Type | Center Cutting |
| Shank Dia. | 3/4 in |
| Helix Angle | 30 deg |
| Milling Dia. | 1-1/8 in |
| Cutting Direction | Right Hand |
| List Number | E2110 |
| End Mill Style | Ball Nose |
| Finish | Bright |
| Shank Type | Weldon |
| Item | Ball End Mill |
| Overall Length | 3.8 in |
| Neck Length | Not Applicable |
| End Mill Application | Finishing |
| Shank Type - Machining | Weldon Flat |
| Measurement System | Fractional Inch |
| Drilling Tool Configuration | Individual |
| Coolant Fed | Non-Coolant Through |
| Primary Material Application ISO Code | P |
| Chip-Breaker | No |
| Primary Material Application | Steel |
| Finish - Machining | Bright |
| Material - Machining | Cobalt |
| Package Quantity | 1 |
