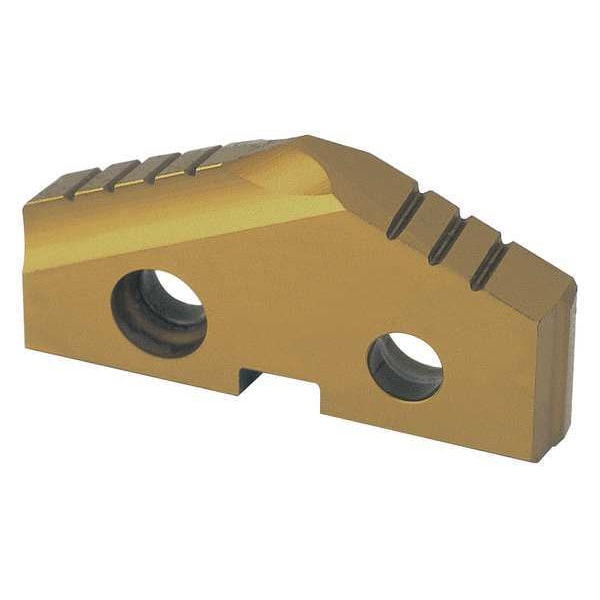

Exchangeable Drill Tp, 1-1/2in, 1/4in Thck
| Insert Size | S08 |
|---|---|
| Workpiece Material | Steel, Cast Iron |
| Cutting Direction | Right Hand |
| Coating | PVD TiAlN |
| Grade | Super HSS(T15) |
| Style | Spade Drill |
| Item | Exchangeable Drill Tip |
| Application | Drilling, General Purpose |
| Rake | Positive |
| No. of Edges | 2 |
| For Use With | Spade Drill #3 Series Holder |
| Insert Thickness | 1/4 in |
| Mounting Style | Screw Clamp |
| Secondary Material Application ISO Code | P, M, N |
| Secondary Material Application | Copper, Aluminum, Stainless Steel, Steel |
| Finish - Machining | TiAlN |
| Primary Material Application | All Materials |
| Primary Material Application ISO Code | K, M, N |
| Seat Size | 3 (Series) |
| Thickness | 6.35 mm |
| Width | 38.094 mm |
| Hole Dia. | 1-1/2 in |
| Coating Process | PVD |
| Measurement System | Fractional Inch |
| Insert Style | SV |
| Material - Machining | High Speed Steel |
| Number of Cutting Edges | 2 |
| ANSI Code | S08307 |
| Shape | Spade |
| Package Quantity | 1 |
