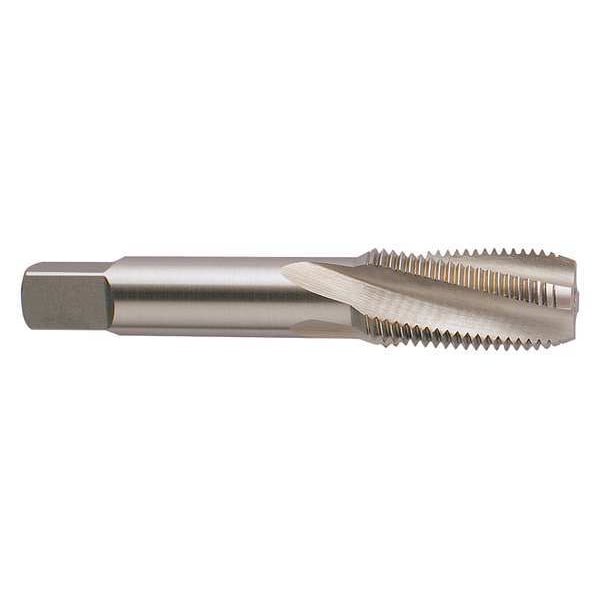

Pipe Tap, 1/4"-18, Taper, 4 Flutes, NPT
| Item | Pipe Tap |
|---|---|
| Tap Thread Size | 1/4"-18 |
| Tap Chamfer | Taper |
| Number of Flutes | 4 |
| Tap Thread Type | NPT |
| Number of Pieces | 1 |
| Thread Direction | Right Hand |
| Standards | NPTF |
| Thread Length | 1-1/16 in |
| Tap Finish | Bright |
| Tap Material | Vanadium High Speed Steel |
| Tap Dimension Type | Pipe |
| Shank Dia. | 0.562 in |
| Tap Style | Pipe |
| Tap Size | 1/4" |
| List Number | Q1 |
| Overall Length | 2-7/16 in |
| Pitch Diameter Limit | Not Rated |
| Tap Grouping | Tap |
| Cutting Direction - Machining | Right Hand |
| Material | HSSE-V3 |
| Finish | Bright |
| Series | Q1 |
| Size | 1/4 X 18 |
| Thread Size | 1/4"-18 |
| 75% Thread Drill Size | 7/16 in |
| Primary Material Application ISO Code | P, M |
| Tap Shank Standard | USCTI Table 311 |
| Extended Neck | Yes |
| Thread Standard | NPTF |
| Material Grade - Machining | Q1 |
| Secondary Material Application ISO Code | K, N, P, M |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Threads per Inch | 18 |
| Tap Length Standard | USCTI Table 311 |
| Primary Material Application | Stainless Steel, Steel |
| Shank Length | 1-1/8 in |
| Measurement System | Fractional Inch |
| Helix Angle | 15 deg |
| Package (H) | 0.75 |
| Connection (in) | 0.5625 x 0.421 |
| Trade Name | YG Pipe Taps |
| Shank Type | Square |
| OAL (inch) | 2.44 |
| Package (W) | 0.75 |
| System of Measurement | Inch |
| Useable Length (in) | 1.06 |
| Shk. Dia. (metric) | 14.29 |
| Diameter (inch) | 0.25 |
| Shk. Dia. (inch) | 0.5625 |
| Thread Series | NPTF |
| OAL (metric) | 62 |
| Thd. Lgth. (metric) | 26.9 |
| Package (L) | 2.75 |
| Diameter (metric) | 6.35 |
| Drill Size (inch) | 0.4375 |
| Weight | 0.123 |
| Sqr. Size (metric) | 10.69 |
| Thd. Lgth. (inch) | 1.06 |
| Blank Standard | 311 |
| Connection (mm) | 14.29 x 10.69 |
| Useable Length (mm) | 26.92 |
| Length/ Diameter | 2.5 x D |
| Sqr. Lgth. (inch) | 0.44 |
| Sqr. Lgth. (metric) | 11.18 |
| Size & Pitch | 43104 |
| Sqr. Size (inch) | 0.421 |
| Tap Type | Pipe |
| Chamfer Type | Modified Bottoming |
| Drill Size (mm) | 11.11 |
| Helix Angle | 15 |
| Chamfer Length | 2P-3P |
| Pitch | 18 |
| Package Quantity | 1 |
