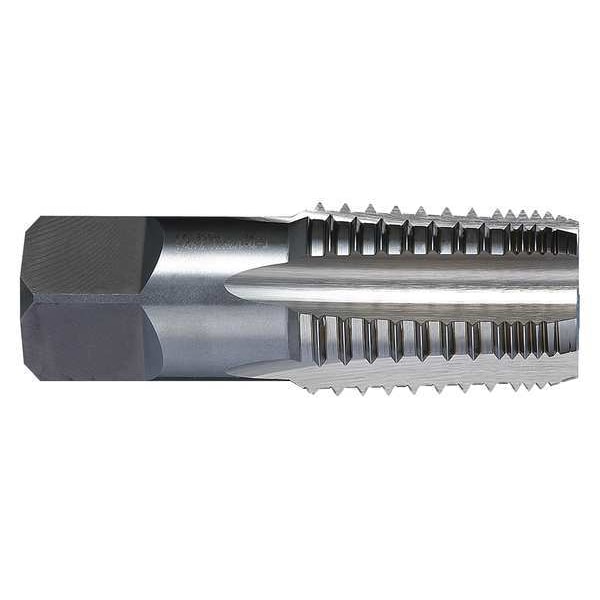

Pipe Tap, 3/4"-14, Taper, 5 Flutes, NPT
| Item | Pipe Tap |
|---|---|
| Tap Thread Size | 3/4"-14 |
| Tap Chamfer | Taper |
| Number of Flutes | 5 |
| Tap Thread Type | NPT |
| Standards | NPTF |
| Tap Grouping | Tap |
| Tap Material | Vanadium High Speed Steel |
| Thread Direction | Right Hand |
| Overall Length | 3-1/4 in |
| Shank Dia. | 0.906 in |
| Tap Style | Pipe |
| Pitch Diameter Limit | Not Rated |
| Tap Dimension Type | Pipe |
| List Number | S1 |
| Tap Finish | Bright |
| Tap Size | 3/4" |
| Number of Pieces | 1 |
| Thread Length | 1-3/8 in |
| Cutting Direction - Machining | Right Hand |
| Finish | Bright |
| Material | HSSE-V3 |
| Size | 44259 |
| Series | S1 |
| Extended Neck | Yes |
| Interrupted Thread | Yes |
| Tap Shank Standard | ANSI |
| Measurement System | Fractional Inch |
| Shank Length | 1-7/8 in |
| Primary Material Application ISO Code | P, K |
| Threads per Inch | 14 |
| 75% Thread Drill Size | 0.9063 in |
| Secondary Material Application | Steel |
| Spiral Direction | Neutral |
| Tap Length Standard | ANSI |
| Material Grade - Machining | S1 |
| Thread Standard | NPTF |
| Secondary Material Application ISO Code | P |
| Thread Size | 3/4"-14 |
| Helix Angle | 0 deg |
| Primary Material Application | Cast Iron, Steel |
| Blank Standard | 311 |
| Shk. Dia. (inch) | 0.9063 |
| Sqr. Size (metric) | 17.25 |
| Diameter (metric) | 19.05 |
| Diameter (inch) | 0.75 |
| Shank Type | Square |
| Sqr. Lgth. (metric) | 17.53 |
| Tap Type | Pipe |
| Package (H) | 1.25 |
| System of Measurement | Inch |
| OAL (inch) | 3.25 |
| Useable Length (mm) | 35.05 |
| Useable Length (in) | 1.38 |
| Sqr. Size (inch) | 0.679 |
| Drill Size (inch) | 0.9063 |
| Connection (in) | 0.9063 x 0.679 |
| Weight | 0.5 |
| Drill Size (mm) | 23.02 |
| Chamfer Type | Modified Bottoming |
| OAL (metric) | 82.6 |
| Chamfer Length | 2P-3P |
| Shk. Dia. (metric) | 23.02 |
| Pitch | 14 |
| Connection (mm) | 23.02 x 17.25 |
| Package (L) | 3.625 |
| Size & Pitch | 41702 |
| Package (W) | 1.25 |
| Sqr. Lgth. (inch) | 0.69 |
| Thd. Lgth. (inch) | 1.38 |
| Thd. Lgth. (metric) | 35.1 |
| Helix Angle | 0 |
| Thread Series | NPTF |
| Length/ Diameter | 2.0 xD |
| Trade Name | YG Pipe Taps |
| Package Quantity | 1 |
