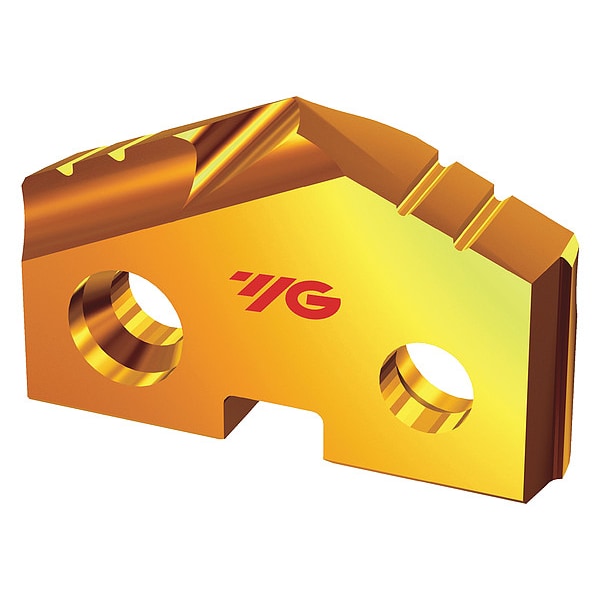

Point SV120 Hardslick Super Cobalt SV
| Item | Point SV120 Hardslick Super Cobalt SV Point |
|---|---|
| Rake | Positive |
| Insert Size | SV120 |
| Shape | Spade |
| Secondary Material Application ISO Code | M, N, P |
| Secondary Material Application | Aluminum, Copper, Alloy Steel, Stainless Steel, Tool and Die Steel |
| Manufacturer Grade | T15 |
| Number of Cutting Edges | 2 |
| Primary Material Application ISO Code | K, P |
| Coating Process | PVD |
| Hole Dia. | 1-7/8 in |
| Material - Machining | High Speed Steel |
| Seat Size | 3 |
| Insert Style | SV |
| Width | 1-7/8 in |
| Thickness | 1/4 in |
| Finish - Machining | Hardslick |
| ANSI Code | SV120156 |
| Primary Material Application | Alloy Steel, Carbon Steel, Steel, Structural Steel, Cast lron |
| For Drill Type | Spade Drill |
| Included Angle | 132 deg |
| Cutting Direction | Right Hand |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
