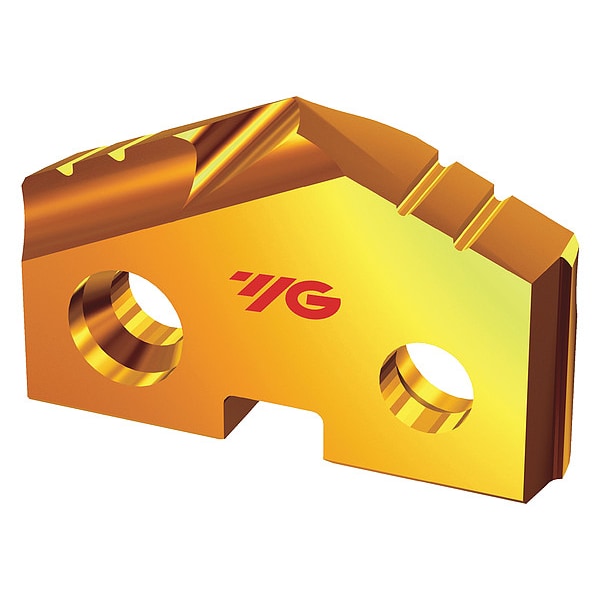

Point SV525 H-Coated Premium Cobalt SV
| Item | Point SV525 H-Coated Premium Cobalt SV Point |
|---|---|
| Seat Size | 0 |
| Rake | Positive |
| Material - Machining | High Speed Steel |
| Width | 5/8 in |
| Finish - Machining | H-Coated |
| For Drill Type | Spade Drill |
| Primary Material Application ISO Code | K, P |
| Hole Dia. | 5/8 in |
| Secondary Material Application | Aluminum, Stainless Steel, Copper |
| Insert Style | SV |
| Thickness | 1/8 in |
| Primary Material Application | Alloy Steel, Carbon Steel, Steel, Structural Steel, Cast lron |
| ANSI Code | SV525040 |
| Insert Size | SV525 |
| Cutting Direction | Right Hand |
| Coating Process | PVD |
| Shape | Spade |
| Number of Cutting Edges | 2 |
| Secondary Material Application ISO Code | M, N |
| Manufacturer Grade | M48 |
| Included Angle | 132 deg |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
