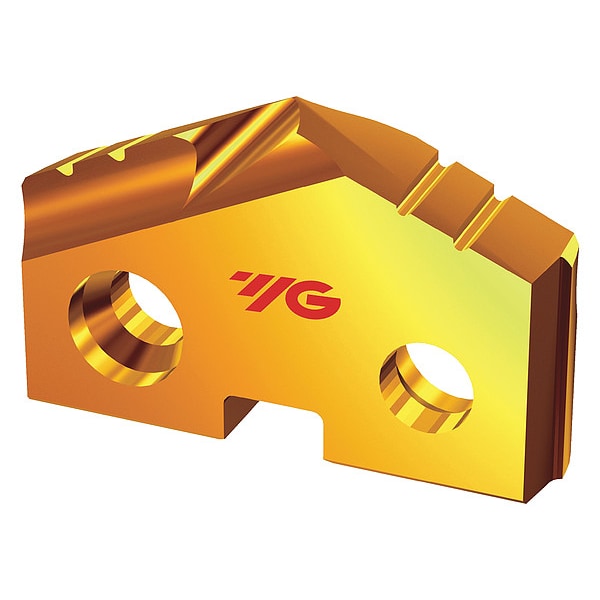

Point SV525 H-Coated Premium Cobalt SV
| Item | Point SV525 H-Coated Premium Cobalt SV Point |
|---|---|
| Cutting Direction | Right Hand |
| Insert Style | SV |
| Insert Size | SV525 |
| Max Drill Dia. | 1-1/2 in |
| Drilling Application | Alloy Steel, Aluminum, Carbon Steel, Cast lron, Copper Alloys, Free Machining Steel, High Alloyed Steel, Non-Alloyed Steel, Stainless Steel, Structural Steel, Tool Steel |
| Finish - Machining | H-Coated |
| Seat Size | 3 |
| Spiral Direction | Neutral |
| ANSI Code | SV525132 |
| Coolant Fed | Coolant Through |
| Flute Type | Straight |
| Material - Machining | Steel |
| Primary Material Application ISO Code | M, K, N |
| Coating Process | PVD |
| Width | 38.094 mm |
| Thickness | 6.4 mm |
| Hole Dia. | 1-1/2 in |
| Measurement System | Fractional Inch |
| Number of Cutting Edges | 2 |
| Shape | Spade |
| Primary Material Application | All Materials |
| Package Quantity | 1 |
