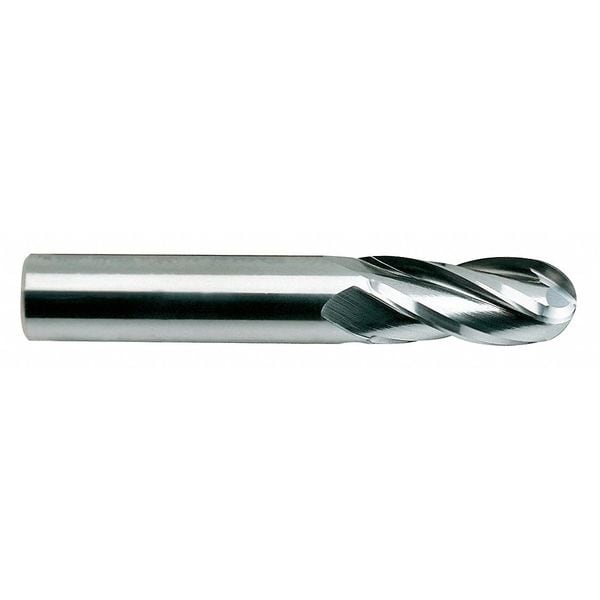

Solid Carb End Mill, 3/8inD., TIALN-Futura
| Dimension Type | Fractional Inch |
|---|---|
| Milling Diameter | 3/8 in |
| End Mill Material | Carbide |
| Number of Flutes | 4 |
| Length of Cut | 1 in |
| Single End/Double End | Single End |
| End Mill Cutting Type | Center Cutting |
| Grade | TIALN-Futura Coated |
| Shank Dia. | 3/8 in |
| Helix Angle | 30 deg |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Overall Length | 2-1/2 in |
| Finish | TiAlN |
| End Mill Style | Ball Nose |
| Milling Dia. | 3/8 in |
| Item | Ball End Mill |
| List Number | E5250 |
| End Mill Application | Finishing |
| Neck Length | Not Applicable |
| Material - Machining | Carbide |
| Chip-Breaker | No |
| Primary Material Application ISO Code | P |
| Measurement System | Fractional Inch |
| Drilling Tool Configuration | Individual |
| Coolant Fed | Non-Coolant Through |
| Finish - Machining | TiAlN |
| Primary Material Application | Steel |
| Shank Type - Machining | Weldon Flat |
| Package Quantity | 1 |
