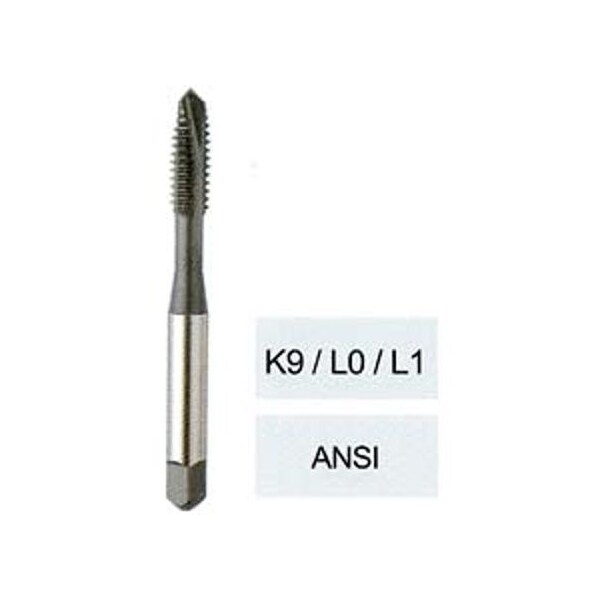

Spiral Flute Tap, 7/8"-9, Bright, 3 Flutes
| Item | Spiral Flute Tap |
|---|---|
| Tap Style | Flute |
| Number of Flutes | 3 |
| Size | 7/8 X 9, H6 |
| Material | HSSE-V3 |
| Tap Thread Size | 7/8"-9 |
| Tap Finish | Bright |
| Thread Direction | Right Hand |
| Connection (mm) | 17.7 x 13.28 |
| Chamfer Length | 4P-5P |
| Connection (in) | 0.697 x 0.523 |
| Pitch | 9 |
| Useable Length (mm) | 56.39 |
| Sqr. Lgth. (inch) | 0.75 |
| OAL (metric) | 119.13 |
| Size & Pitch | 40002 |
| Chamfer Type | Plug |
| Pitch Limit | H6 |
| Length/ Diameter | 3 x D |
| Finish | Bright |
| Shank Type | Square |
| Tap Type | SPPT |
| Package (L) | 5 |
| Drill Size (mm) | 19.6588 |
| Thd. Lgth. (inch) | 2.22 |
| Sqr. Lgth. (metric) | 19.05 |
| Weight | 0.489 |
| Diameter (metric) | 22.225 |
| Helix Angle | 0 |
| Useable Length (in) | 2.22 |
| Package (H) | 1 |
| System of Measurement | Inch |
| Sqr. Size (inch) | 0.523 |
| Blank Standard | 302 |
| Trade Name | YG Tap GP |
| OAL (inch) | 4.69 |
| Package (W) | 1 |
| Coolant Thru 0 With and X without | x |
| Shk. Dia. (metric) | 17.7 |
| Thread Series | UNC |
| Sqr. Size (metric) | 13.28 |
| Shk. Dia. (inch) | 0.697 |
| Drill Size (inch) | 0.774 |
| Diameter (inch) | 0.875 |
| Thd. Lgth. (metric) | 56.39 |
| Package Quantity | 1 |
