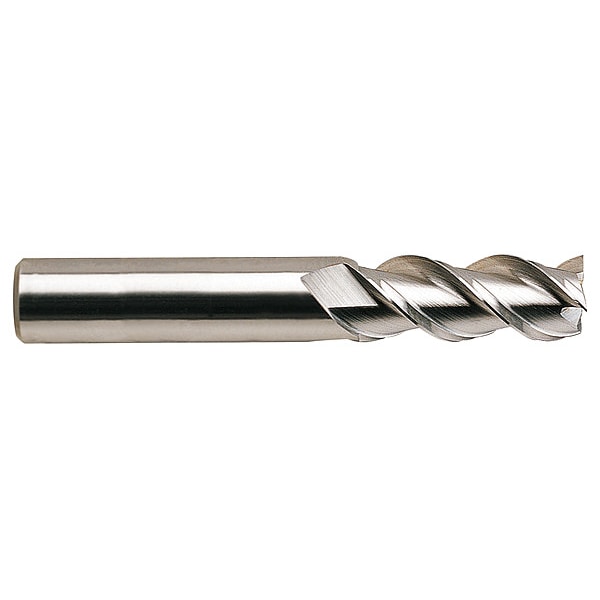

Square End Mill, Single End, 3/16", Carbide
| Milling Diameter | 3/16 in |
|---|---|
| Number of Flutes | 3 |
| Length of Cut | 9/16 in |
| Single End/Double End | Single End |
| End Mill Cutting Type | Center Cutting |
| Grade | General Purpose |
| Shank Dia. | 3/16 in |
| Overall Length | 2 in |
| End Mill Style | Square |
| Finish | Bright |
| Cutting Direction | Right Hand |
| Helix Angle | 45 deg |
| List Number | E5243 |
| Item | Square End Mill |
| End Mill Application | Finishing |
| Milling Dia. | 3/16 in |
| Material Applications | Steel, Carbon Steel, Prehardened Steel, Stainless Steel |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Shank Type - Machining | Straight |
| Drilling Tool Configuration | Individual |
| Finish - Machining | Bright |
| Material Grade - Machining | General Purpose |
| Primary Material Application ISO Code | P, M |
| Primary Material Application | Stainless Steel, Steel |
| Package Quantity | 1 |
