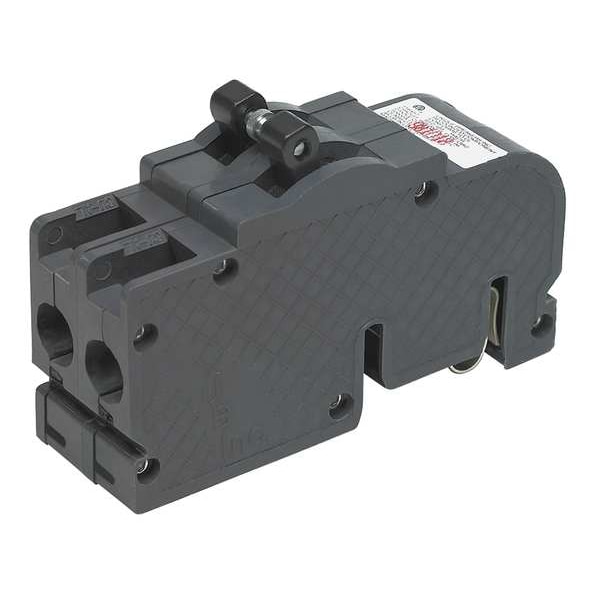

Miniature Circuit Breaker, UBIZ Series, 20A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | UBIZ |
| Amps | 20A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA at 120/240V AC |
| Terminal Connection | Lug |
| Frame Size | 125A, HACR |
| Width | 1-1/2 in |
| Depth | 2.53 in |
| Height | 4.81 in |
| DC Voltage Rating | Not Rated |
| Max. Wire Size | 6 AWG |
| Min. Wire Size | 14 AWG |
| Standards | ETL Listed, UL Listed |
| For Use With | Zinsco Load Centers |
| Max. Operating Temp. | 250 deg F |
| Min. Operating Temp. | 0 deg F |
| Compatible Panelboard/Load Center Series | ML12 |
| Length (Straight Wireway) | 4.81 in |
| Voltage | 120/240VAC |
| Length | 4.81 in |
| Package Quantity | 1 |
