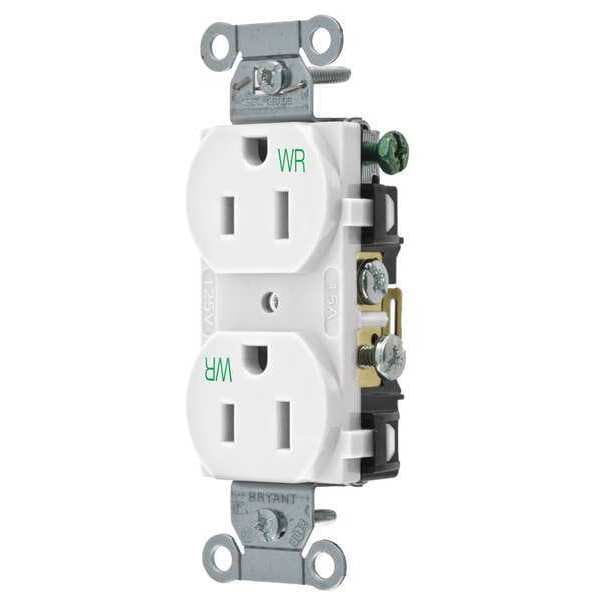

15A Duplex Receptacle 125VAC 5-15R WH
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Commercial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Voltage | 125VAC |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Amps - Plugs and Receptacles | 15 |
| Weather Resistant - Plugs and Receptacles | Yes |
| Power Indicator | No |
| NEMA Configuration | 5-15 |
| Outlet Type | Duplex |
| Corrosion Resistant | Yes |
| Special Features | Corrosion resistant |
| Color - Plugs and Receptacles | White |
| Weather Resistant | Yes |
| Sub-Category | Duplex Receptacles |
| Number of Poles | 2 |
| Wiring Method | Back, Side |
| Item | Receptacle |
| Number of Gangs | 1 |
| Amps | 15 |
| Phase | Single |
| Mounting Type | Flush |
| Material | Nylon |
| Standards | CSA Certified, Federal Specification, UL Listed |
| HP | 1/2 hp |
| Number of Wires | 3 |
| Color | White |
| Housing Material | Nylon |
| NEMA Receptacle Configuration | 5-15R |
| Horsepower Rating | 0.5 HP |
| AFCI | No |
| Polarized | Yes |
| Surge Protection | No |
| Flange Height | Not Applicable |
| Flange Type | Non-Flanged |
| Current Rating | 15 A |
| Receptacle Type | Duplex |
| GFCI | No |
| Flange Diameter | Not Applicable |
| Market | Commercial |
| Wire Connection Type | Screw Terminals |
| Cover Type | No Cover |
| Housing Color | White |
| Resistance Properties | Weather Resistant |
| Grounding | Grounded |
| Connection Orientation | Straight |
| Voltage Rating | 125 V |
| Mount Type | Flush |
| Flange Width | Not Applicable |
| Grade | Federal Specification |
| Package Quantity | 1 |
