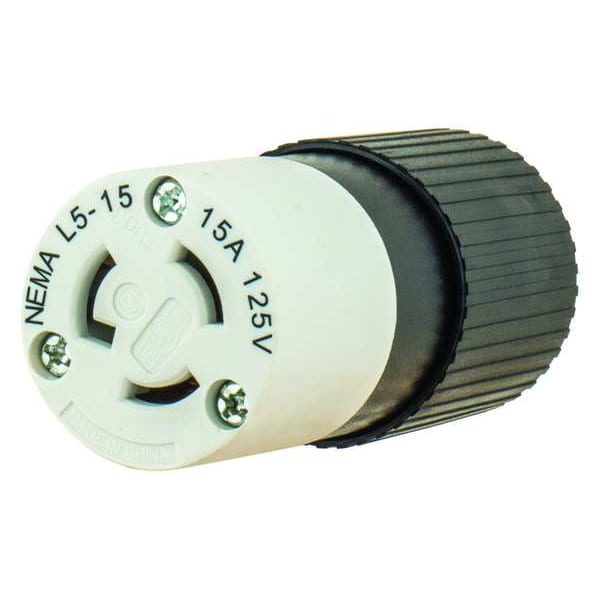

15A Locking Connector 2P 3W 125VAC L5-15R BK/WT
| Item - Plugs and Receptacles | Locking Connector |
|---|---|
| Item | Locking Connector |
| Amps - Plugs and Receptacles | 15 |
| Amps | 15 |
| NEMA Plug Configuration - Plugs and Receptacles | L5-15R |
| Voltage - Plugs and Receptacles | 125V AC |
| Voltage | 125VAC |
| NEMA Configuration | L5-15 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Black, White |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Color | Black, White |
| Grade - Plugs and Receptacles | Industrial |
| Corrosion Resistant | No |
| Grade | Industrial |
| Cord Size | 0.3 to 5/8 in |
| Standards | CSA Certified, UL Listed |
| Power Indicator | No |
| Material | Nylon |
| Phase | Single |
| Antimicrobial | No |
| IP Rating | IP20 |
| Housing Color | Black, White |
| Overall Length | 1.53 in |
| Midget Locking | No |
| Polarized | Yes |
| Current Rating | 15 A |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Voltage Rating | 125V AC |
| Housing Material | Composite |
| Market | Industrial |
| Cap Type | No Cap or Cover |
| Minimum Operating Temperature | -40 deg C |
| Minimum Wire Size | 14 AWG |
| For Environment | Dry |
| Maximum Operating Temperature | 75 deg C |
| Grounding | Grounded |
| Wire Connection Type | Screw Terminals |
| Shrouded | No |
| Connection Orientation | Straight |
| NEMA Receptacle Configuration | L5-15R |
| Maximum Wire Size | 10 AWG |
| For Location | Indoor |
| Power Indicating Light | No |
| Type | Connector Body |
| Nema Rating | L5-15R |
| Application | Heavy Duty Industrial |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Insulation | Insulated Body |
| Width | 1.53 in |
| Wire Size | #14 AWG to #10 AWG |
| Conductor Range | #14 AWG to #12 AWG |
| Length | 1.53 in |
| Height | 2.95 in |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Connectivity | Screw Terminals |
| Item Type | 15A Triple Gripper Nylon Connector |
| Number Of Conductors | 3-Wire Grounding |
| Amperage Rating | 15 A |
| Style | Internal Cord Clamp |
| Features | Face and body feature alignment keys for easy assembly; Amperage, voltage and NEMA configuration imprinted on face for easy identification; Impact/chemical resistant, toughened nylon construction; Internal “self-centering†Triple Gripper® cord grip with “radius teeth†design provides secure cord retention |
| Material - Mounting Hardware | Cord Mounted |
| Display Size | Standard Sized Product |
| Package Quantity | 1 |
