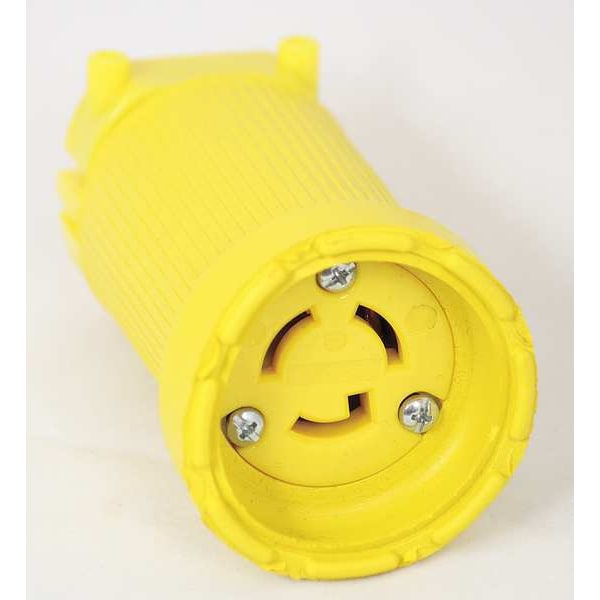

15A Locking Connector 2P 3W 125VAC L5-15R YL
| Item | Locking Connector |
|---|---|
| Item - Plugs and Receptacles | Locking Connector |
| Amps - Plugs and Receptacles | 15 |
| Amps | 15 |
| NEMA Plug Configuration - Plugs and Receptacles | L5-15R |
| Voltage | 125VAC |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Configuration | L5-15 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Yellow |
| Color | Yellow |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Grade - Plugs and Receptacles | Industrial |
| Corrosion Resistant | No |
| Cord Size | 0.296 to 0.68 in |
| Standards | CSA Certified, US Listed |
| Phase | Single |
| IP Rating | Not Rated |
| Grade | Industrial |
| Material | Rubber/Polycarbonate |
| Antimicrobial | No |
| Power Indicator | No |
| Shrouded | No |
| Market | Industrial |
| NEMA Receptacle Configuration | L5-15R |
| For Minimum Cable Diameter | 0.296 in |
| For Maximum Cable Diameter | 0.68 in |
| Resistance Properties | Dust Resistant, Moisture Resistant, Weather Resistant |
| Housing Material | Rubber |
| Housing Color | Yellow |
| Current Rating | 15 A |
| Midget Locking | No |
| Power Indicating Light | No |
| Voltage Rating | 125V AC |
| Connector Type | Flip Seal |
| Blade Type | Locking |
| Pole/Wire | 2 Pole 3 Wire |
| Max Amps | 15 Amp |
| Volts | 125 VAC |
| Package Quantity | 1 |
