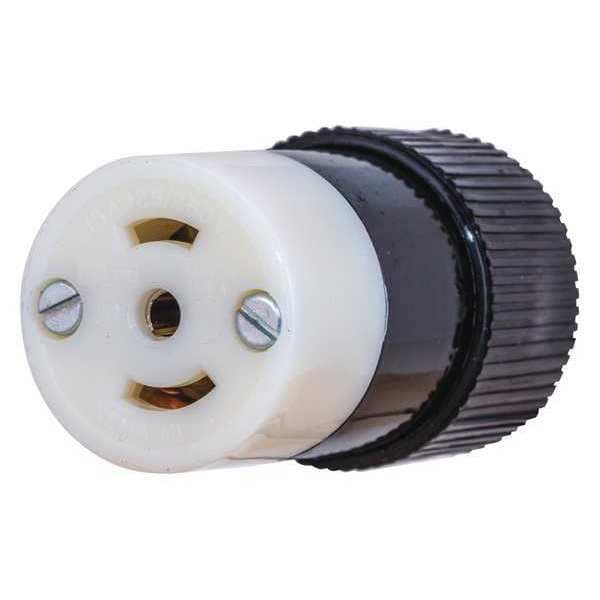

15A Midget Locking Connector 3P 3W 125/250VAC ML-3R
| Item | Midget Locking Connector |
|---|---|
| Item - Plugs and Receptacles | 15A Midget Female Connector |
| Amps | 15 |
| Voltage | 125/250V AC |
| Number of Poles | 3 |
| NEMA Configuration | ML3-15 |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Flange Material | Nylon |
| Color | Black, White |
| Standards | CSA Certified, UL Listed |
| For Use With | Midget Locking Plug or Flanged Inlet |
| Body Material | Nylon |
| Cord Size | 0.281 to 5/8 in |
| Material | Composite |
| IP Rating | IP20 |
| Phase | Single |
| Minimum Wire Size | 18 AWG |
| Housing Material | Nylon |
| For Minimum Cable Diameter | 0.281 in |
| For Environment | Dry |
| Overall Length | 1-1/4 in |
| Cap Type | No Cap or Cover |
| Midget Locking | Yes |
| For Maximum Cable Diameter | 5/8 in |
| Current Rating | 15 A |
| Wire Connection Type | Screw Terminals |
| Maximum Operating Temperature | 75 deg C |
| NEMA Receptacle Configuration | ML3-15R |
| Maximum Wire Size | 12 AWG |
| Minimum Operating Temperature | -40 deg C |
| Resistance Properties | Shatter and Crack Resistant |
| Voltage Rating | 125/250V AC |
| Housing Color | Black, White |
| Connection Orientation | Straight |
| Shrouded | No |
| Market | Industrial |
| Grounding | Non-Grounded |
| Type | Connector Body |
| Nema Rating | ML-3R |
| Amperage Rating | 15 A |
| Connectivity | Screw Terminals |
| Insulation | Insulated Body |
| Height | 2.15 in |
| Style | Non-Grounding |
| Material - Mounting Hardware | Cord Mounted |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Display Size | Midget NEMA Locking |
| Number Of Conductors | 3-Wire Non-Grounding |
| Application | Heavy Duty Industrial |
| Width | 1-1/4 in |
| Length | 1-1/4 in |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Conductor Range | #14 AWG |
| Item Type | Female Connector |
| Wire Size | #18 AWG to #12 AWG |
| Features | Smaller body size for use in tighter fit applications where larger products can't; Abuse resistant nylon housing |
| Package Quantity | 1 |
