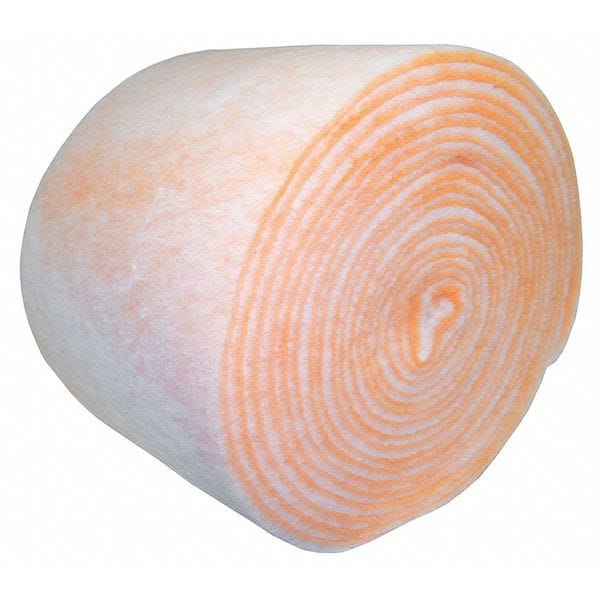

16 in x 90 ft x 1 in Polyester Air Filter Roll, MERV 8, Orange/White (Formerly Air Handler)
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Nominal Filter Size | 16 in x 90 ft x 1 in |
| Nominal Width | 90 ft |
| Nominal Thickness | 1 in |
| Nominal Height | 16 in |
| Performance Rating | MERV 8 |
| Removes Particles Down To | 3 to 10 microns |
| Filters Out | Cat & Dog Dander, Cement Dust, Dust Mites, Dusting Aids, Fabric Protector, Hair Spray, Mold, Pudding Mix, Spores |
| Common Applications | General Use |
| Media Material | Polyester |
| Media Color | White, Orange |
| Filter Efficiency - Air Filters | 80 % |
| Air Flow @ 300 fpm | 1,200 cfm |
| Initial Resistance @ 300 fpm | 0.18 in wc |
| Max. Temp. | 180¿F |
| Max. Velocity | 625 fpm |
| Actual Filter Size | 16 in x 90 ft x 1 in |
| Actual Width | 90 ft |
| Actual Thickness | 1 in |
| Actual Height | 16 in |
| Standards | UL 900 |
| Air Filter Media Type | Polyester |
| Style - Air Filters | Roll |
| MERV | 8 |
| Media Roll Width | 16" |
| Air Filter Item | Air Filter Roll |
| Initial Resistance @ 500 fpm | 0.36 in wc |
| Air Filter Color | White, Orange |
| Media Roll Length | 90 ft |
| Frame Included | No |
| Surface Tackifier | Yes |
| Item | Air Filter Roll |
| Recommended Final Resistance | 0.5 in wc |
| Type | VL-OR1 1" Orange/White Media Roll |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
