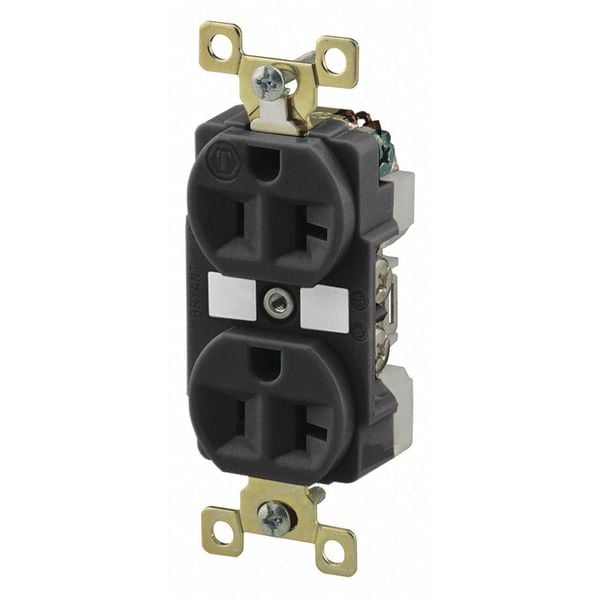

20A Duplex Receptacle 125VAC 5-20R BK
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Harsh and Heavy Use Industrial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | No |
| HP | 1 hp |
| Special Features | Corrosion resistant |
| Number of Gangs | 1 |
| Standards | CSA Certified, Federal Specification W-C-59, NEMA WD-1 and WD-6, UL 498, UL Listed |
| Number of Poles | 2 |
| Wiring Method | Back, Side |
| Color - Plugs and Receptacles | Black |
| Amps | 20 |
| Sub-Category | Duplex Receptacles |
| Material | Nylon |
| NEMA Configuration | 5-20 |
| Weather Resistant - Plugs and Receptacles | No |
| Phase | Single |
| Outlet Type | Duplex |
| Voltage | 125VAC |
| Item | Receptacle |
| Color | Black |
| Number of Wires | 3 |
| Mounting Type | Flush |
| Power Indicator | No |
| Amps - Plugs and Receptacles | 20 |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Weather Resistant | No |
| Corrosion Resistant | Yes |
| Face Plate Width | 1-1/2 in |
| Polarized | Yes |
| Resistance Properties | Corrosion Resistant |
| Includes Mounting Hardware | Yes |
| Minimum Wire Size | 14 AWG |
| Grade | Federal Specification |
| GFCI | No |
| Surge Protection | No |
| Flange Type | Non-Flanged |
| NEMA Receptacle Configuration | 5-20R |
| AFCI | No |
| Connection Orientation | Straight |
| Flange Height | Not Applicable |
| Housing Material | Nylon |
| Maximum Wire Size | 12 AWG |
| Voltage Rating | 125 V |
| Horsepower Rating | 1 HP |
| Housing Color | Black |
| Includes | Mounting Hardware |
| Mount Type | Flush |
| Market | Commercial, Industrial |
| Grounding | Grounded |
| Current Rating | 20 A |
| Wire Connection Type | Screw Terminals |
| Receptacle Type | Duplex |
| Cover Type | No Cover |
| Flange Diameter | Not Applicable |
| Mount Hole Center-to-Center Height | 3.3 in |
| Flange Width | Not Applicable |
| Overall Depth | 1.2 in |
| Contact Material | Brass |
| For Location | Indoor |
| Type | Duplex Receptacle |
| Display Size | Standard Sized Product |
| Amperage Rating | 20 A |
| Current / Amperage Rating | 20 A |
| Series | Extra Heavy Duty |
| Application | Extra Heavy Duty Industrial Specification Grade |
| Style | Finder Groove Face |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Wire Size | #14 AWG to #12 AWG |
| Material - Mounting Hardware | Screw Mounting |
| Wattage | 2500 |
| Connectivity | Back and Side Wired |
| Nema Rating | 5-20R |
| Voltage Rating Description | 125 V |
| Item Type | Traditional Duplex |
| Length | 3.28 in |
| Width | 1.54 in |
| Height | 1.16 in |
| Package Quantity | 1 |
