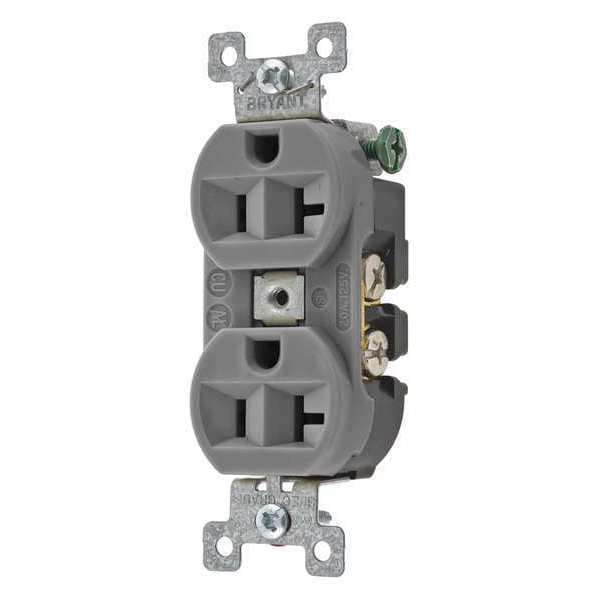

20A Duplex Receptacle 125VAC 5-20R GY
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Phase | Single |
| Amps | 20 |
| Standards | CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL E2186 |
| Wiring Method | Back, Side |
| Weather Resistant - Plugs and Receptacles | No |
| NEMA Configuration | 5-20 |
| Mounting Type | Flush |
| HP | 1 hp |
| Material | Nylon |
| Power Indicator | No |
| Color - Plugs and Receptacles | Gray |
| Number of Wires | 3 |
| Color | Gray |
| Number of Gangs | 1 |
| Sub-Category | Duplex Receptacles |
| Outlet Type | Duplex |
| Voltage | 125VAC |
| Item | Receptacle |
| Special Features | Corrosion resistant |
| Corrosion Resistant | Yes |
| Weather Resistant | No |
| Number of Poles | 2 |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Amps - Plugs and Receptacles | 20 |
| Connection Orientation | Straight |
| Housing Material | Thermoplastic, Composite |
| Includes Mounting Hardware | Yes |
| Wire Connection Type | Screw Terminals |
| Maximum Operating Temperature | 167 deg F |
| Flange Type | Non-Flanged |
| GFCI | No |
| For Location | Indoor |
| Resistance Properties | Corrosion Resistant |
| Voltage Rating | 125 V |
| Flange Height | Not Applicable |
| Receptacle Type | Duplex |
| Minimum Wire Size | 12 AWG |
| Grade | Federal Specification |
| Polarized | Yes |
| Flange Width | Not Applicable |
| Overall Depth | 0.9 in |
| Current Rating | 20 A |
| Grounding | Grounded |
| AFCI | No |
| Mount Type | Flush |
| Includes | Mounting Hardware |
| Mount Hole Center-to-Center Height | 3.3 in |
| Minimum Operating Temperature | -40 deg F |
| Maximum Wire Size | 10 AWG |
| Flange Diameter | Not Applicable |
| Horsepower Rating | 1 HP |
| Surge Protection | No |
| Market | Commercial, Industrial |
| Face Plate Height | 2.7 in |
| NEMA Receptacle Configuration | 5-20R |
| Housing Color | Gray |
| Cover Type | No Cover |
| Hub Type | Feed Through |
| Material - Mounting Hardware | Screw Mounting |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Wattage | 2500 |
| Item Type | Traditional Duplex |
| Current / Amperage Rating | 20 A |
| Nema Rating | 5-20R |
| Series | Heavy Duty |
| Type | Duplex Receptacle |
| Amperage Rating | 20 A |
| Application | Heavy Duty Specification Grade |
| Wire Size | #14 AWG to #12 AWG |
| Style | Finder Groove Face |
| Display Size | Standard Sized Product |
| Connectivity | Back and Side Wired |
| Voltage Rating Description | 125 V |
| Size | Standard Sized Product |
| Width | 1.38 in |
| Features | Slender/compact design; Finder Groove Face; Triple wipe contacts |
| Height | 0.92 in |
| Temperature Rating | Maximum continuous 75°C; minimum -40°C (w/o impact) |
| Length | 3.28 in |
| Industry Standard(s) | UL File No. E2186, Certified to CSA 22.2, No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant |
| Package Quantity | 1 |
