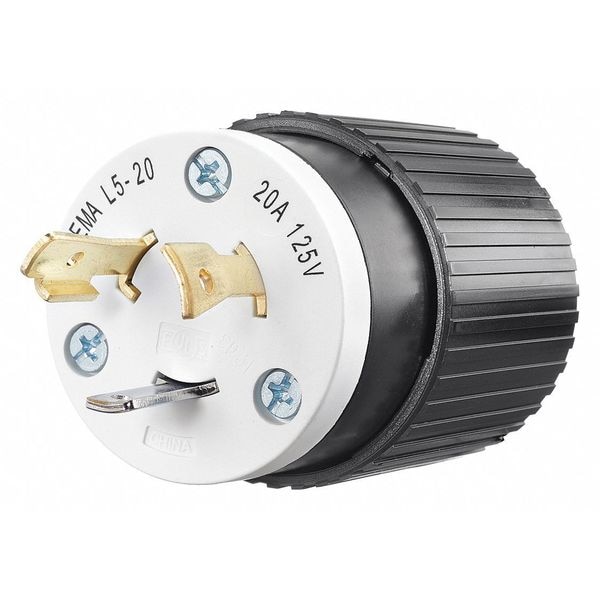

20A Locking Plug 2P 3W 125VAC L5-20P BK/WT
| Item | Locking Plug |
|---|---|
| Item - Plugs and Receptacles | Locking Plug |
| Wiring Style | Standard |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Length | 2.13 in |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 20 |
| NEMA Plug Configuration - Plugs and Receptacles | L5-20P |
| Voltage - Plugs and Receptacles | 125V AC |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Material | Nylon |
| Color | Black, White |
| Grade | Industrial |
| HP | 1 |
| Voltage | 125VAC |
| Corrosion Resistant | No |
| Cord Size | 0.3 to 0.655 in |
| Standards | NEMA WD-1, NEMA WD-5, UL 498 |
| NEMA Configuration | L5-20 |
| Color - Plugs and Receptacles | Black, White |
| Antimicrobial | No |
| IP Rating | IP20 |
| Amps | 20 |
| Application | Extra Heavy Duty Industrial |
| For Environment | Dry |
| Housing Material | Nylon |
| Grounding | Grounded |
| Horsepower Rating | 1 HP |
| Housing Color | Black, White |
| Connection Orientation | Straight |
| For Minimum Cable Diameter | 0.3 in |
| For Location | Indoor |
| Number of Blades | 3 |
| Voltage Rating | 125V AC |
| Overall Length | 2.13 in |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Market | Industrial |
| Maximum Wire Size | 8 AWG |
| Face Diameter | 1.89 in |
| For Maximum Cable Diameter | 0.655 in |
| Current Rating | 20 A |
| Minimum Wire Size | 18 AWG |
| Polarized | Yes |
| Shrouded | No |
| NEMA Plug Configuration | L5-20P |
| Outside Diameter | 2.13 in |
| Wire Connection Type | Screw Terminals |
| Body Length | 2.13 in |
| Wire Size | #18 AWG to #8 AWG |
| Nema Rating | L5-20P |
| Features | Hand grip features wide-rib, non-slip design; Configuration-specific plug face surrounds blades to prevent infiltration of contaminants; Captive, combination Slot/Phillips assembly screws; Double wall construction for extra durability; Neutral blade is nickel-plated for easy identification; Internal “self-centering†Triple Gripper® cord grip with “radius teeth†design provides secure cord retention |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Item Type | 20A Triple Gripper Nylon Plug |
| Width | 2.13 in |
| Type | PlugsPlugs |
| Display Size | Standard Sized |
| Style | Internal Cord Clamp |
| Connectivity | Screw Terminals |
| Material - Mounting Hardware | Cord Mounted |
| Height | 2.86 in |
| Amperage Rating | 20 A |
| Package Quantity | 1 |
