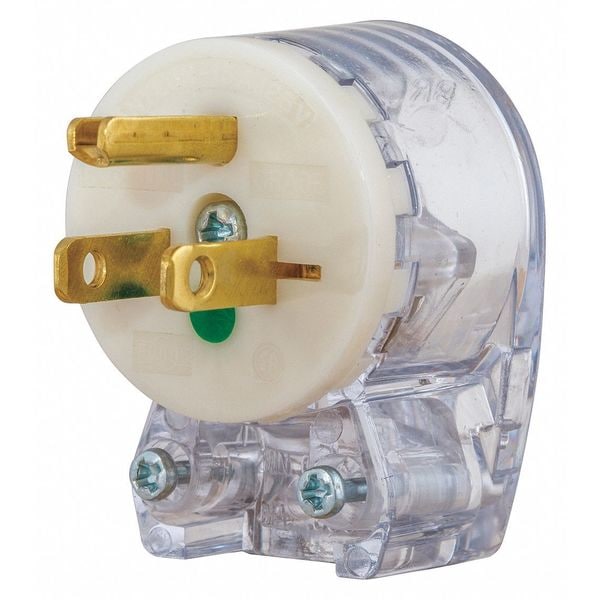

3 Wire Angle Straight Blade Plug Hospital Grade 125VAC 15A
| Item - Plugs and Receptacles | Angle Straight Blade Plug |
|---|---|
| Item | Angle Straight Blade Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | Hospital |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 5-15P |
| Number of Wires | 3 |
| Phase - Plugs and Receptacles | 1 |
| Antimicrobial | No |
| Color | Transparent |
| Number of Poles | 2 |
| Phase | Single |
| Grade | Hospital Grade |
| Cord Size | 0.245 to 0.655 in |
| IP Rating | Not Rated |
| Voltage | 125VAC |
| HP | 1/2 |
| Material | polycarbonate |
| Standards | CSA Certified, UL Listed |
| Color - Plugs and Receptacles | White |
| Amps | 15 |
| Corrosion Resistant | No |
| Connection Orientation | Angled |
| Resistance Properties | Impact Resistant |
| NEMA Plug Configuration | 5-15P |
| Body Length | 2.07 in |
| Voltage Rating | 125V AC |
| Housing Material | Nylon, Polycarbonate |
| Current Rating | 15 A |
| For Minimum Cable Diameter | 0.245 in |
| For Maximum Cable Diameter | 0.655 in |
| Outside Diameter | 1.3 in |
| Wire Connection Type | Screw Terminals |
| Insulation Material | Nylon |
| Polarized | Yes |
| Housing Color | Clear |
| Horsepower Rating | 0.5 HP |
| Number of Blades | 3 |
| Application | Hospital Grade- Tech Spec |
| Package Quantity | 1 |
