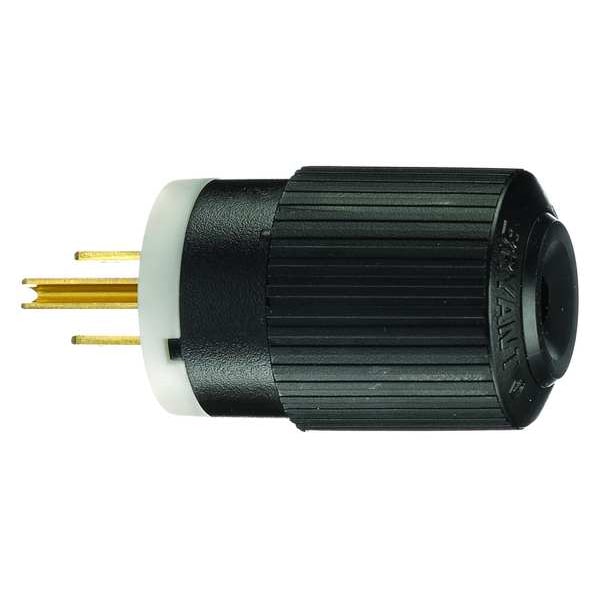

Enchufe industrial de tres clavijas rectas, 125VAC 15A, Amperios: 15
| Item - Plugs and Receptacles | Straight Blade Plug |
|---|---|
| Item | Straight Blade Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 5-15P |
| Number of Wires | 3 |
| Phase - Plugs and Receptacles | 1 |
| Antimicrobial | No |
| Color | Black, White |
| Number of Poles | 2 |
| Cord Size | 0.245 to 0.655 in |
| Color - Plugs and Receptacles | Black, White |
| Special Features | Ergonomic, Fluted Body Design |
| Grade | Industrial |
| IP Rating | Not Rated |
| Phase | Single |
| Corrosion Resistant | No |
| HP | 1/2 |
| Voltage | 125VAC |
| Material | Nylon |
| Standards | CSA Certified, UL Listed |
| Amps | 15 |
| Type | Plug |
| Minimum Wire Size | 14 AWG |
| Outside Diameter | 1.52 in |
| For Maximum Cable Diameter | 0.655 in |
| Housing Material | Composite |
| Compatible with Series | Triple Gripper |
| Market | Industrial, Commercial |
| Wire Connection Type | Screw Terminals |
| For Minimum Cable Diameter | 0.3 in |
| Housing Color | Black, White |
| Body Length | 2.18 in |
| Voltage Rating | 125V AC |
| Maximum Wire Size | 12 AWG |
| For Location | Indoor |
| Current Rating | 15 A |
| NEMA Plug Configuration | 5-15P |
| Face Diameter | 1.38 in |
| For Environment | Dry |
| Number of Blades | 3 |
| Insulation Material | Nylon |
| Polarized | Yes |
| Connection Orientation | Straight |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Horsepower Rating | 0.5 HP |
| Grounding | Grounded |
| Cord Type | All Portable |
| Application | Extra Heavy Duty Industrial Grade; Industrial |
| Wire Gauge | #14 AWG to #12 AWG |
| Mounting Hardware | Cord Mounted |
| Nema Rating | 5 to 15 P |
| Style | Extra Heavy Duty |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Wattage | 1875 |
| Series | Industrial |
| Height | 1.38 in |
| Width | 1.52 in |
| Display Size | Standard Sized |
| Item Type | Tech-Spec Triple Gripper |
| Material - Mounting Hardware | Cord Mounted |
| Connectivity | Screw Terminals |
| Amperage Rating | 15 A |
| Length | 2.18 in |
| Wire Size | #14 AWG to #12 AWG |
| Package Quantity | 1 |
