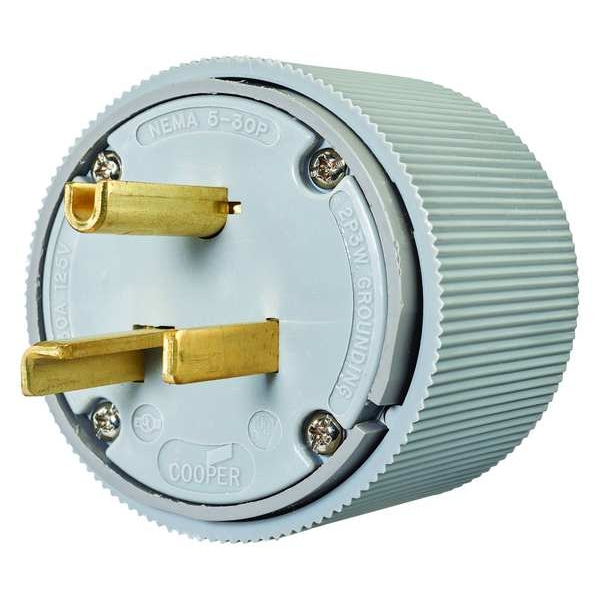

3 Wire Industrial Straight Blade Plug 125VAC 30A
| Item - Plugs and Receptacles | Straight Blade Plug |
|---|---|
| Item | Straight Blade Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 30 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 5-30P |
| Number of Wires | 3 |
| Phase - Plugs and Receptacles | 1 |
| Antimicrobial | No |
| Color | Gray |
| Number of Poles | 2 |
| Voltage | 125VAC |
| Special Features | Ergonomic, Fluted Body Design |
| Phase | Single |
| Color - Plugs and Receptacles | Gray |
| Grade | Industrial |
| Amps | 30 |
| Corrosion Resistant | No |
| Cord Size | 0.425 to 1.32 in |
| Standards | CSA Certified, UL Listed |
| IP Rating | Not Rated |
| HP | 2 |
| Material | Thermoplastic |
| Type | Plug |
| Wire Connection Type | Screw Terminals |
| Housing Color | Gray |
| Outside Diameter | 3.12 in |
| Blade Material | Brass |
| Grounding | Grounded |
| Minimum Wire Size | 12 AWG |
| NEMA Plug Configuration | 5-30P |
| For Environment | Dry |
| For Maximum Cable Diameter | 1.32 in |
| Current Rating | 30 A |
| Horsepower Rating | 2 HP |
| Maximum Wire Size | 8 AWG |
| Connection Orientation | Straight |
| Insulation Material | Thermoplastic |
| For Minimum Cable Diameter | 0.425 in |
| Number of Blades | 3 |
| Body Length | 3.81 in |
| For Location | Indoor |
| Housing Material | Composite |
| Voltage Rating | 125V AC |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Market | Industrial, Commercial |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Wattage | 3750 |
| Application | Heavy Duty; Industrial |
| Mounting Hardware | Cord Mounted |
| Wire Gauge | #12 AWG to #8 AWG |
| Style | Extra Heavy Duty |
| Nema Rating | 5 to 30 P |
| Cord Type | All Portable |
| Series | Industrial |
| Item Type | Standard |
| Wire Size | #12 AWG to #8 AWG |
| Connectivity | Pressure Terminal Screws |
| Amperage Rating | 30 A |
| Material - Mounting Hardware | Cord Mounted |
| Display Size | Standard Sized |
| Package Quantity | 1 |
