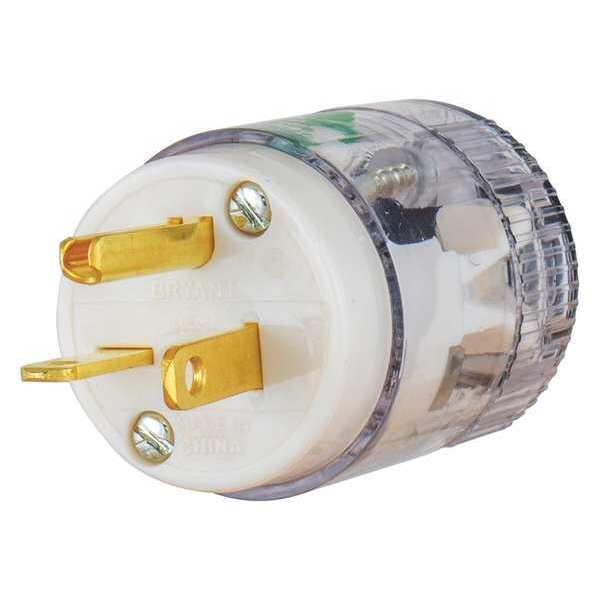

3 Wire Straight Blade Plug Hospital Grade 125VAC 20A
| Item - Plugs and Receptacles | Straight Blade Plug |
|---|---|
| Item | Straight Blade Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | Hospital |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 5-20P |
| Number of Wires | 3 |
| Phase - Plugs and Receptacles | 1 |
| Antimicrobial | No |
| Color | Transparent |
| Number of Poles | 2 |
| Grade | Hospital Grade |
| Special Features | Ergonomic, Fluted Body Design |
| Phase | Single |
| Standards | NEMA WD-1 and WD-5 UL498 |
| Color - Plugs and Receptacles | Transparent |
| Amps | 20 |
| Cord Size | 0.245 to 0.655 in |
| IP Rating | Not Rated |
| Material | polycarbonate |
| Corrosion Resistant | No |
| HP | 1 |
| Voltage | 125VAC |
| Voltage Rating | 125V AC |
| Number of Blades | 3 |
| Current Rating | 20 A |
| NEMA Plug Configuration | 5-20P |
| For Maximum Cable Diameter | 0.655 in |
| Polarized | Yes |
| Wire Connection Type | Screw Terminals |
| Insulation Material | Nylon |
| Housing Color | Clear |
| For Minimum Cable Diameter | 0.3 in |
| Connection Orientation | Straight |
| Horsepower Rating | 1 HP |
| Housing Material | Thermoplastic |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Moisture Resistant |
| Application | Hospital Grade- Tech Spec |
| Package Quantity | 1 |
