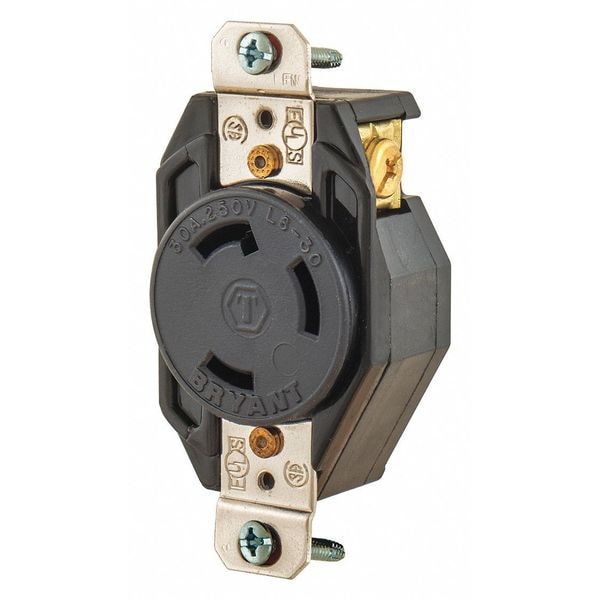

30A Locking Receptacle 2P 3W 250VAC L6-30R BK
| Item | Locking Receptacle |
|---|---|
| NEMA Configuration | L6-30 |
| Voltage | 250V AC |
| Amps | 30 |
| Color | Black |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | Single |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| Material | Nylon |
| Mounting Type | Flush Mount |
| Grade | Industrial |
| Standards | UL 498 |
| HP | 2.0 |
| NEMA Receptacle Configuration | L6-30R |
| Minimum Wire Size | 14 AWG |
| Includes Mounting Hardware | Yes |
| Wire Connection Type | Screw Terminals |
| Mount Type | Flush |
| Resistance Properties | Corrosion Resistant |
| For Location | Indoor |
| Includes | Mounting Hardware |
| Maximum Wire Size | 8 AWG |
| Housing Color | Black |
| Horsepower Rating | 2 HP |
| Housing Material | Composite |
| Current Rating | 30 A |
| Grounding | Grounded |
| Shrouded | No |
| For Environment | Dry |
| Contact Material | Copper Alloy |
| Market | Industrial |
| Voltage Rating | 250V AC |
| Polarized | Yes |
| Wire Size | #14 AWG to #8 AWG |
| Nema Rating | L6-30R |
| Height | 1.24 in |
| Length | 3.28 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Features | Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors; Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly; NEMA rating and configuration are molded into face for easy identification; One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention |
| Amperage Rating | 30 A |
| Display Size | Standard Sized Product |
| Width | 1.7 in |
| Material - Mounting Hardware | Screw Mounting |
| Connectivity | Terminal Screws |
| Application | Extra Heavy Duty Industrial Specification Grade |
| Item Type | 30A Single Nylon Receptacle |
| Type | Receptacle |
| Style | Single Receptacle |
| Package Quantity | 1 |
