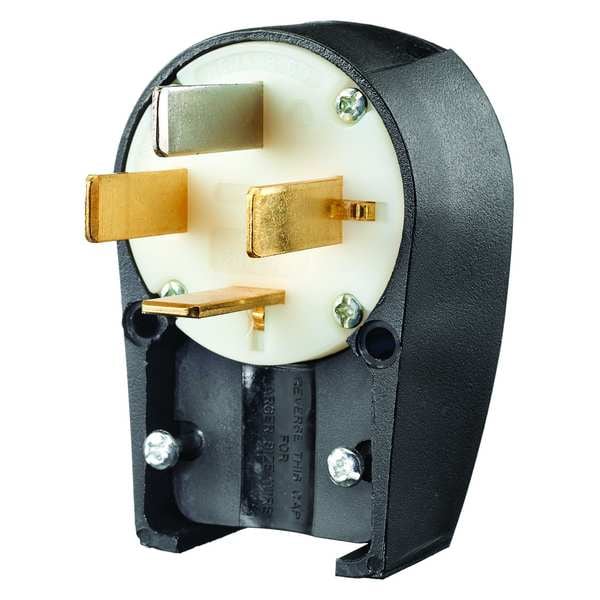

4 Wire Industrial Angle Straight Blade Plug 120/208VAC 60A
| Item - Plugs and Receptacles | Angle Straight Blade Plug |
|---|---|
| Item | Angle Straight Blade Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 60 A |
| Voltage - Plugs and Receptacles | 120/208V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 18-60P |
| Number of Wires | 4 |
| Phase - Plugs and Receptacles | 1 |
| Antimicrobial | No |
| Color | Black, White |
| Number of Poles | 4 |
| Amps | 60 |
| Voltage | 120/208VAC |
| Material | Nylon |
| IP Rating | Not Rated |
| Standards | CSA Certified, UL Listed |
| Color - Plugs and Receptacles | Black, White |
| HP | 7-1/2 |
| Cord Size | 5/8 to 1.38 in |
| Grade | Industrial |
| NEMA Configuration | 18-60 |
| Phase | Three |
| Corrosion Resistant | No |
| Type | Plug |
| Minimum Wire Size | 6 AWG |
| Connection Orientation | Angled |
| For Minimum Cable Diameter | 5/8 in |
| Body Length | 4.19 in |
| Voltage Rating | 120/208V AC |
| Current Rating | 60 A |
| Horsepower Rating | 7.5 HP |
| For Location | Indoor |
| Number of Blades | 4 |
| Maximum Wire Size | 4 AWG |
| Market | Industrial, Commercial |
| Grounding | Non-Grounded |
| NEMA Plug Configuration | 18-60P |
| Housing Material | Nylon |
| Blade Material | Brass |
| For Environment | Dry |
| For Maximum Cable Diameter | 1.38 in |
| Polarized | Yes |
| Wire Connection Type | Screw Terminals |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Housing Color | Black |
| Insulation Material | Nylon |
| Wattage | 15000 |
| Application | Heavy Duty; Industrial |
| Nema Rating | 18 to 60 P |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Cord Type | All Portable |
| Wire Gauge | #6 AWG to #4 AWG |
| Style | Heavy Duty |
| Mounting Hardware | Cord Mounted |
| Length | 4.19 in |
| Connectivity | Pressure Terminal Screws |
| Display Size | Standard Sized |
| Width | 3-1/4 in |
| Wire Size | #6 AWG to #4 AWG |
| Material - Mounting Hardware | Cord Mounted |
| Series | Industrial |
| Item Type | Standard |
| Height | 1-3/4 in |
| Amperage Rating | 60 A |
| Package Quantity | 1 |
