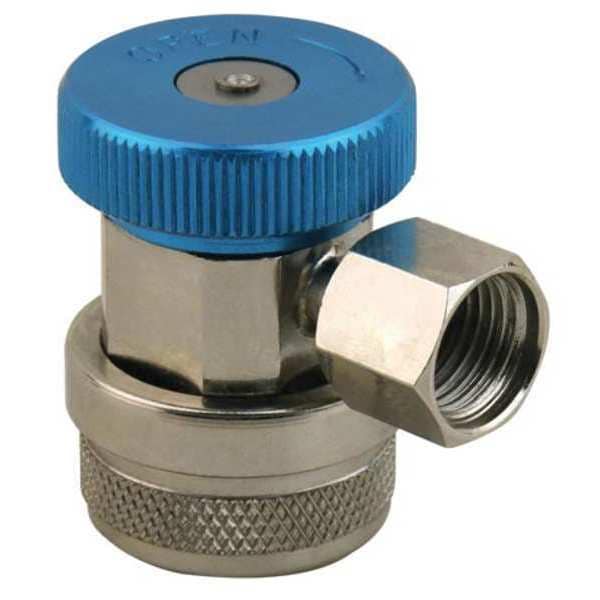

Automotive Service Connector, Blue, Low, Connection Size: 14mm Female Side Port
| Item | Quick Coupler |
|---|---|
| Connection Size | 14mm Female Side Port |
| For Use With | Mobile R-134a Air Conditioning Systems |
| Outside Dia. | 1-5/16 in |
| Includes | Safety Stop |
| Length | 1-7/8 in |
| Material | Copper |
| Features | The safety stop prevents refrigerant flow if not connected to port. |
| Application | Automotive |
| Standards | Not Applicable |
| Connection Material | Copper |
| Body Material | Copper |
| Type | Low Side |
| Access Connection Gender | Female |
| Access Connection Size | 14 mm |
| Core Material | Steel |
| A2L Compatibility | Not A2L Compatible |
| Operating Pressure - Maximum | 815 psi |
| Line Connection Gender | Female |
| Operating Temperature - Maximum | 155 deg F |
| For Refrigerant Type | R-134A |
| Access Connection Thread Direction | Right-Hand |
| Overall Length | 1-7/8 in |
| Line Connection Thread Direction | Right-Hand |
| Coefficient of Volume (Cv) | Not Applicable |
| Operating Temperature - Minimum | -14 deg F |
| Overall Height | 2 in |
| Valve Type | Access |
| Valve Inside Diameter | 13 mm |
| Product Type | Quick Coupler |
| Access Connection Type | SAE |
| Line Connection Type | SAE |
| Line Connection Size | 14 mm |
| Configuration | Elbow |
| Overall Width | 1-5/16 in |
| Tool Type | Quick Coupler |
| Package Quantity | 1 |
| Country of Origin (subject to change) | China |
