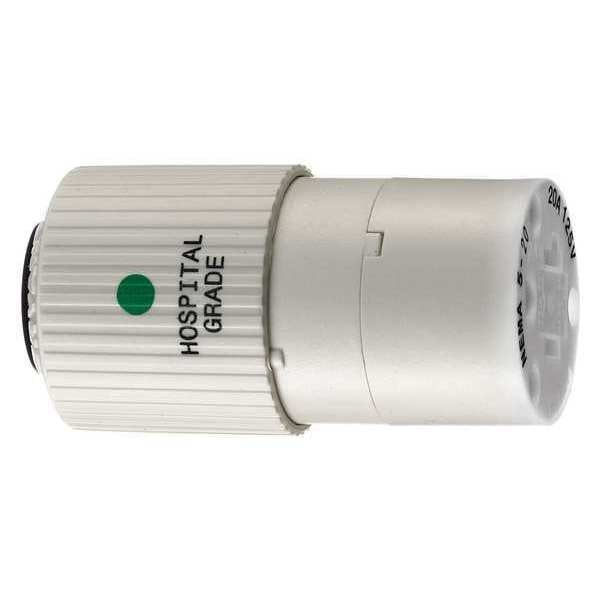

Blade Connector, White, 20A, Hospital
| Item - Plugs and Receptacles | Straight Blade Connector |
|---|---|
| Amps - Plugs and Receptacles | 20 A |
| Voltage | 125VAC |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration | 5-20R |
| NEMA Plug Configuration - Plugs and Receptacles | 5 to 20 R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | White |
| Grade - Plugs and Receptacles | Hospital |
| Antimicrobial | No |
| Amps | 20 |
| IP Rating | Not Rated |
| Item | Straight Blade Connector |
| Color | White |
| Standards | NEMA WD-1, NEMA WD-5, UL 498 |
| Special Features | Dust Resistant |
| Material | Nylon |
| Grade | Hospital Grade |
| Phase | Single |
| Corrosion Resistant | No |
| Cord Size | 0.245 to 0.655 in |
| Power Indicator | No |
| Housing Color | White |
| Housing Material | Composite |
| For Maximum Cable Diameter | 0.66 in |
| Voltage Rating | 125 V AC |
| Minimum Operating Temperature | -40 Degrees C |
| For Location | Indoor |
| Current Rating | 20 A |
| For Minimum Cable Diameter | 1/4 in |
| Grounding | Grounded |
| Market | Industrial, Commercial |
| Overall Length | 2.95 in |
| For Environment | Dry |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 14 AWG |
| Power Indicating Light | No |
| Resistance Properties | Chemical Resistant, Dust Ignition Proof, Impact Resistant |
| Maximum Operating Temperature | 75 deg C |
| NEMA Configuration | 5-20 |
| Package Quantity | 1 |
