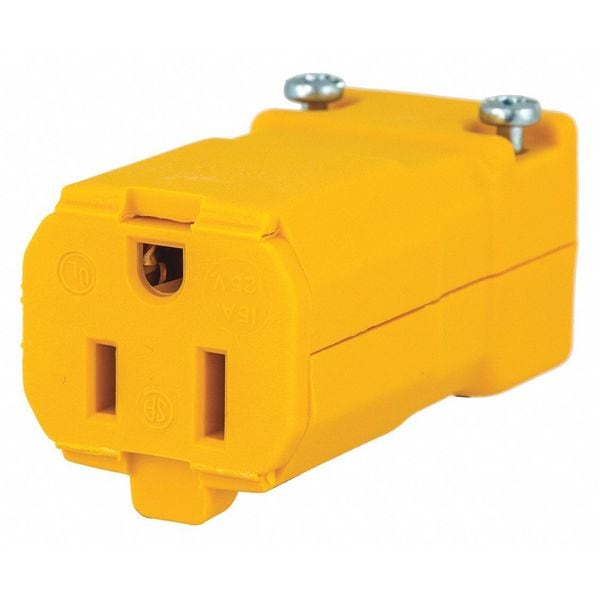

Conector de hoja, amarillo, 15A, industrial
| Item - Plugs and Receptacles | Straight Blade Connector |
|---|---|
| Amps - Plugs and Receptacles | 15 A |
| Voltage | 125VAC |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration | 5-15R |
| NEMA Plug Configuration - Plugs and Receptacles | 5 to 15 R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Style | Hinged |
| Color - Plugs and Receptacles | Yellow |
| Grade - Plugs and Receptacles | Industrial |
| Antimicrobial | No |
| Grade | Industrial |
| Amps | 15 |
| Color | Yellow |
| Standards | NEMA WD-1, NEMA WD-5, UL 498 |
| Corrosion Resistant | No |
| Special Features | Dust Resistant |
| Item | Straight Blade Connector |
| Phase | Single |
| Cord Size | 0.22 to 0.66 in |
| IP Rating | Not Rated |
| Material | Nylon |
| Power Indicator | No |
| Power Indicating Light | No |
| Maximum Wire Size | 10 AWG |
| For Maximum Cable Diameter | 0.66 in |
| Voltage Rating | 125 V AC |
| For Environment | Dry |
| Minimum Wire Size | 14 AWG |
| Grounding | Grounded |
| Wire Connection Type | Screw Terminals |
| Overall Length | 2.62 in |
| Housing Material | Nylon |
| For Location | Indoor |
| Maximum Operating Temperature | 75 deg C |
| Resistance Properties | Chemical Resistance |
| Current Rating | 15 A |
| For Minimum Cable Diameter | 0.22 in |
| Minimum Operating Temperature | -40 Degrees C |
| Market | Industrial, Commercial |
| Housing Color | Yellow |
| Grounding Style | Grounding |
| Number Of Conductors | 3-Wire Grounding |
| Style | Heavy Duty |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Material - Mounting Hardware | Cord Mounted |
| Type | Connector Body |
| Connectivity | Screw Terminals |
| Nema Rating | 5 to 15 R |
| Width | 1-1/4 in |
| Height | 1.12 in |
| Insulation | Insulated Body |
| Conductor Range | #14 AWG to #10 AWG |
| Amperage Rating | 15 A |
| Series | Commercial |
| Application | Heavy Duty |
| Length | 2.62 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Display Size | Standard Sized Product |
| Item Type | Valise |
| Package Quantity | 1 |
