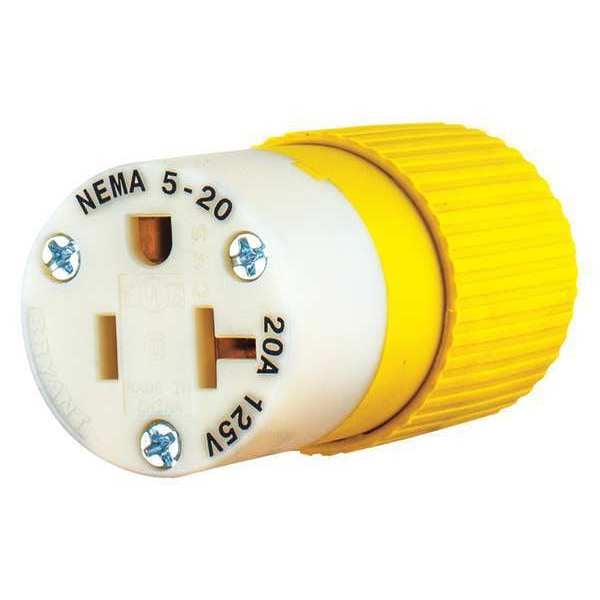

Blade Connector, Yellow/White, 20A, Marine
| Item - Plugs and Receptacles | Straight Blade Connector |
|---|---|
| Amps - Plugs and Receptacles | 20 A |
| Voltage | 125VAC |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration | 5-20R |
| NEMA Plug Configuration - Plugs and Receptacles | 5 to 20 R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | White, Yellow |
| Grade - Plugs and Receptacles | Marine |
| Antimicrobial | No |
| Material | Nylon |
| Amps | 20 |
| Corrosion Resistant | Yes |
| Color | Yellow, White |
| IP Rating | Not Rated |
| Phase | Single |
| Standards | NEMA WD-1, NEMA WD-5, UL 498 |
| Grade | Marine |
| Cord Size | 0.245 to 0.655 in |
| Special Features | Corrosion resistant |
| Item | Straight Blade Connector |
| Power Indicator | No |
| Maximum Wire Size | 10 AWG |
| For Maximum Cable Diameter | 0.66 in |
| Current Rating | 20 A |
| Voltage Rating | 125 V AC |
| For Location | Indoor |
| Overall Length | 2.95 in |
| Minimum Operating Temperature | -40 Degrees C |
| For Environment | Dry |
| Housing Material | Nylon |
| Maximum Operating Temperature | 75 deg C |
| For Minimum Cable Diameter | 1/4 in |
| Wire Connection Type | Screw Terminals |
| Resistance Properties | Chemical Resistance |
| Grounding | Grounded |
| Housing Color | Yellow |
| Market | Industrial, Commercial |
| Minimum Wire Size | 14 AWG |
| Shrouded | Yes |
| Power Indicating Light | No |
| Grounding Style | Grounding |
| Nema Rating | 5 to 20 R |
| Material - Mounting Hardware | Cord Mounted |
| Connectivity | Screw Terminals |
| Type | Connector Body |
| Item Type | Tech-Spec Triple Gripper |
| Conductor Range | #14 AWG to #10 AWG |
| Length | 2.95 in |
| Width | 1.52 in |
| Series | Industrial |
| Number Of Conductors | 3-Wire Grounding |
| Height | 1.38 in |
| Amperage Rating | 20 A |
| Style | Extra Heavy Duty |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Insulation | Insulated Body |
| Display Size | Standard Sized Product |
| Cord Range | 0.245"-0.655" |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Application | Extra Heavy Duty Industrial Grade |
| Package Quantity | 1 |
