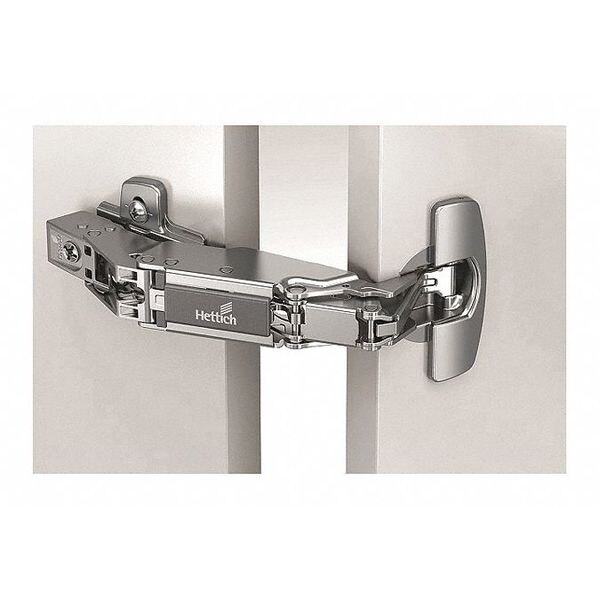

Butt Hinge, Steel, Concealed Mounting, 1 1/2 in Leaf W x 2 3/8 in Leaf H, Nickel
| Corners | Round |
|---|---|
| Door Leaf Height | 1 in |
| Door Leaf Thickness | 1 in |
| Door Leaf Width | 1 in |
| Finish | Nickel |
| Holes per Leaf | 2 |
| Load Capacity | 10 lb |
| Material | Steel |
| Mounting | Concealed |
| Orientation | Non Handed |
| Pin Dia. | 5/16 in |
| Range of Motion | 160 deg |
| Required Door Thickness | 19/32 in to 1-17/64 in |
| Features | Cover Cap |
| Frame Leaf Thickness | 5/8 in |
| Type | Door Hinge |
| Pin Type | Removable |
| Ligature Resistant | No |
| Pin Material | Steel |
| Hinge Number | #1 |
| Frame Leaf Height | 2-3/8 in |
| Height (In.) | 2-3/8 |
| Standards | ANSI/BHMA |
| Width (In.) | 1-1/2 |
| Frame Leaf Width | 1-1/2 in |
| Holes | With |
| For Use With | 19/32" to 1-17/64" Thickness Frame Leafs |
| Number of Wires | 0 |
| Item | Butt Hinge |
| Bearing Type | Adjustable |
| Hardware | Yes |
| Overall Width | 3-3/4 in |
| Hand Orientation | Non-Handed |
| Range of Motion - Maximum | 160 deg |
| Mounting Style | Full Surface |
| Door Thickness - Minimum | 5/8 in |
| Pin Diameter | 5/16 in |
| Door Thickness - Maximum | 1-1/4 in |
| ANSI/BHMA Finish | Bright Nickel-Plated, Clear Coated |
| Includes Hardware | Hardware Included |
| Number of Holes per Leaf | 2 |
| Removable Pin | Yes |
| Corner Type | Round |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
