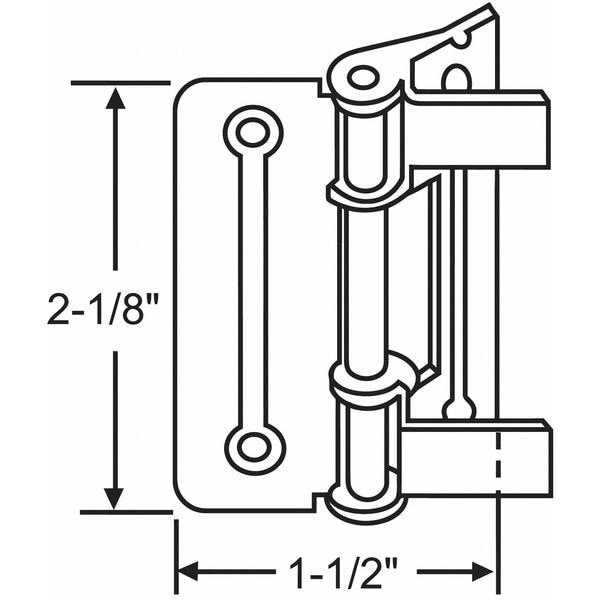

Butt Hinge, Steel, Full Surface Mounting, 1 1/2 in Leaf W x 2 1/8 in Leaf H, Yellow Zinc
| Corners | Round |
|---|---|
| Door Leaf Height | 2-1/8 in |
| Door Leaf Thickness | 0.06 in |
| Door Leaf Width | 1-1/2 in |
| Finish | Yellow Zinc |
| Holes per Leaf | 2 |
| Load Capacity | 30 lb |
| Material | Steel |
| Mounting | Full Surface |
| Orientation | Non Handed |
| Pin Dia. | 5/16 in |
| Range of Motion | 160 deg |
| Required Door Thickness | 7/8 in |
| Features | These Steel Door Hinges Require Full Surface Mounting |
| Item | Butt Hinge |
| Frame Leaf Height | 2-1/8 in |
| Frame Leaf Width | 1-1/2 in |
| Frame Leaf Thickness | 0.06 in |
| Pin Type | Non-Removable |
| Number of Wires | 0 |
| Bearing Type | Plain |
| Pin Material | Steel |
| Hardware | Yes |
| Ligature Resistant | No |
| Hinge Number | #1 |
| Holes | With |
| Standards | ANSI/BHMA |
| Overall Width | 1-1/2 in |
| Hand Orientation | Non-Handed |
| Mounting Style | Full Surface |
| Includes Hardware | Hardware Included |
| Range of Motion - Maximum | 160 deg |
| Corner Type | Round |
| ANSI/BHMA Finish | Zinc-Plated |
| Door Thickness - Minimum | 1 in |
| Pin Diameter | 5/16 in |
| Door Thickness - Maximum | 7/8 in |
| Removable Pin | No |
| Number of Holes per Leaf | 2 |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
