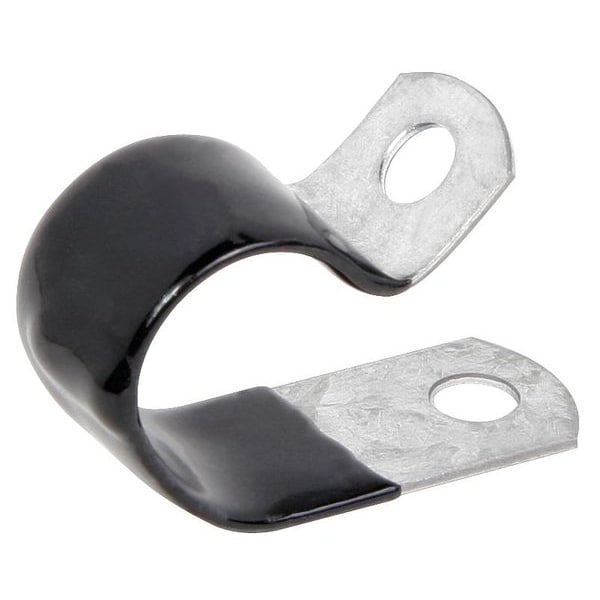

Clamp, Cushioned, Dia 5/16 In, PK50
| Item | Clamp |
|---|---|
| Clamp Material | Steel |
| Color | Black |
| Width | 1/2 in |
| Clamp Color | Black |
| Mounting Hole Dia. | 0.2031 in |
| Material | Steel |
| Type | Light Duty with Cushion |
| Finish | Galvanized |
| Clamp Finish | Hot Dipped Galvanized |
| Cable Clamping Dia. | 5/16 in |
| Cushion Type | Vinyl |
| Thickness | 0.032 in |
| Coating Material | Vinyl Plastisol |
| Clamping Dia. | 5/16 in |
| Temp. Range (F) | -30 F to +180 |
| Clamp Band Width | 1/2 in |
| Package Quantity | 50 |
| Clamp Thickness | 0.032 in |
| Standards | ASTM A653/A653M |
| Liner Color | Black |
| Additional Features | Part# CWV0607Z1 5/16 In. Diameter Light Duty Clamp Hot-Dipped Galvanized Steel, Chem-Treated G90 Black Vinyl Plastisol Cushion Manufactured by KMC Stampings 0.312 In. Clamping Diameter 0.203 In. Screw Hole Size 0.5 In. Width 0.032 In. Material Thickness |
| Band Width | 1/2 in |
| Operating Temperature - Maximum | 180 deg F |
| Operating Temperature - Minimum | -30 deg F |
| Product Type | Clamp |
| Clamping Diameter - Maximum | 5/16 in |
| Cushion Material | Vinyl Plastisol |
| Mounting Hole Diameter | 13/64 in |
