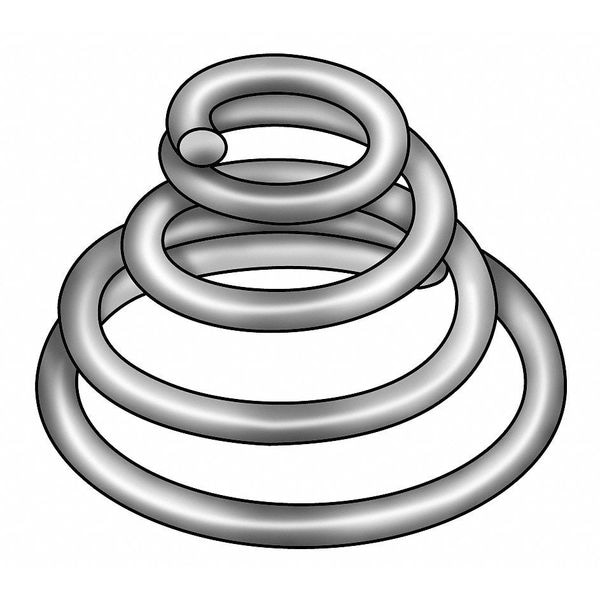

Compress Spring, Conical, 302 SS, 1/4x0.420
| Type | Conical |
|---|---|
| Material | 302 Stainless Steel |
| Overall Length | 1/4 in |
| Wire Dia. | 0.029 in |
| Large Outside Dia. | 0.42 in |
| Small Outside Dia. | 0.218 in |
| Compressed Length | 0.07 in |
| Spring Rate | 16.38 lb/in |
| Color | Gray |
| Finish | Plain |
| Item | Compression Spring |
| End Type | Closed |
| Load @ 50% Free Length (Lbs.) | 2.04 |
| Wire Type | Round |
| Meets/Exceeds | ASTM A313 |
| Load @ Solid (Lbs.) | 3.14 |
| Product Type | Compression Spring |
| Outside Diameter - Minimum | 0.22 in |
| System of Measurement | Inch |
| Compatible Rod Size | 11/64 in |
| Inside Diameter - Maximum | 0.18 in |
| Inside Diameter - Minimum | 0.14 in |
| Spring Shape | Conical |
| Standards | ASTM A313 |
| Total Active Coils | 1.9 |
| Wire Diameter | 0.03 in |
| Outside Diameter - Maximum | 0.42 in |
| Free Length | 1/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
